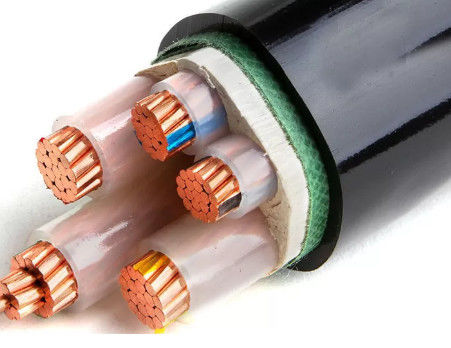

Low Voltage 0.6/1 kV 3+2 Core XLPE Insulated Cable PVC Sheathed Unarmoured & Armoured

No.cores x
cross-sec.

Insulation
thickness

Sheath
thickness
Nominal
value

Outer Ø
approx.

weight
approx.

Current ratings in air 30℃

Current ratings buried 20℃

Phase

Neutral

mm²

mm

mm

mm

mm

kg / km

A

A

3×4＋2×2.5

0.7

0.7

1.8

12.7

302

37

47

3×6＋2×4

0.7

0.7

1.8

13.9

404

47

60

3×10＋2×6

0.7

0.7

1.8

16.1

592

64

81

3×16＋2×10

0.7

0.7

1.8

18.6

879

85

106

3×25＋2×16

0.9

0.7

1.8

22.2

1338

113

137

3×35＋2×16

0.9

0.7

1.8

24.6

1650

139

164

3×50＋2×25

1.0

0.9

1.8

27.7

2355

173

198

3×70＋2×35

1.1

0.9

1.9

31.9

3211

222

246

3×95＋2×50

1.1

1.0

2.1

36.2

4353

271

293

3×120＋2×70

1.2

1.1

2.2

39.9

5566

318

334

3×150＋2×70

1.4

1.1

2.3

45

6600

370

375

3×185＋2×95

1.6

1.1

2.5

49.4

8264

427

422

3×240＋2×120

1.7

1.2

2.7

54.9

10501

507

492

3×300＋2×150

1.8

1.4

2.9

62.9

13044

599

560
