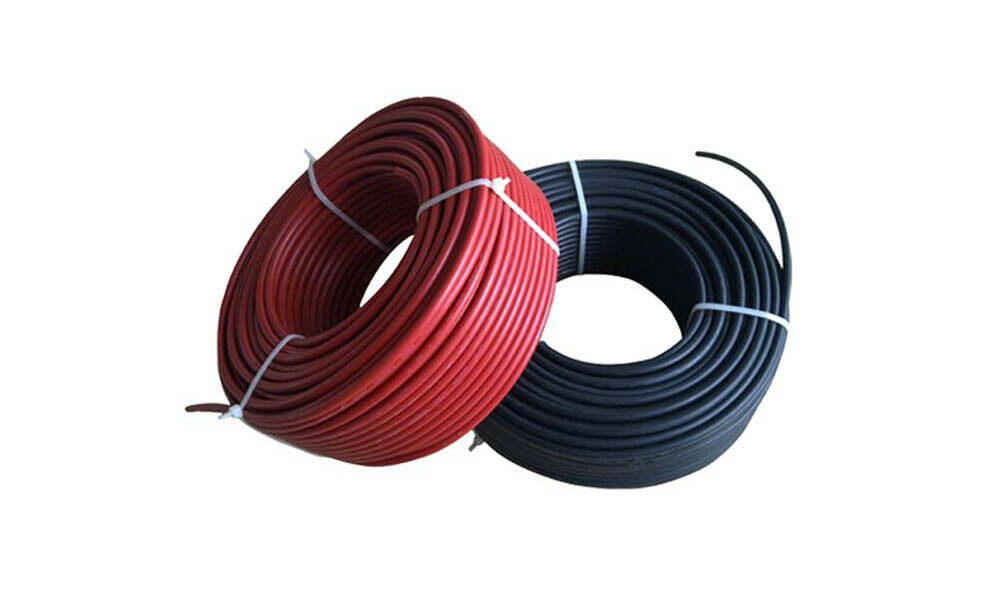

Professional Solar PV Wire , 6mm Solar Cable 2 Core Photovoltaic System
Professional Solar PV Wire , 6mm Solar Cable 2 Core Photovoltaic System

Professional Solar PV Wire , 6mm Solar Cable 2 Core Photovoltaic System

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: TUV,ISO,CE,IEC
Payment & Shipping Terms:
Minimum Order Quantity: 5000meter
Price: US$0.9~7.95 per meter
Packaging Details: Wooden drums
Delivery Time: Two weeks
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000Kilometer per Month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Model Name: Solor Cable Conductor Type: Flexible Tinned Copper
Size: 2x2.5mm2 2x4mm2 2x6mm2 Nos.of Core: 2 Cores
Insulation Color: Any Color Warranty: 2 Years
High Light:

solar pv wire

,

dc cable for solar pv

Product Description

Professional XLPO Insulated Solar PV Wire 2 Core CE TUV Certification





Construction



1. Core Conductor: Tinned annealed copper (stranded core)

2. Popular sizes: 2core x2.5/4.0/6.0/10.0/16.0/25.0/35.0mm²

3. Cable conductor: stranded tinned annealed copper

4. Insulation: electron-beam cross-linked Polyolefin(XLPE)

5. Jacket:XLPE/ PE (black, red)

6. Other specs:

a)Temperature rating: -40C up to +120C

b). Fire performance: IEC 60332-1, UL1581 VW-1

c). Approval: TUV Rheinland 2PfG 1169 1.5mm² to 50mm²

d). High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant

e). Voltage suitable: 600-1000V



Application



Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of different climate outdoor installation, and can adapt to the dry and wet indoor working environment



Advantage



With high resistance against heat, cold, ozone, UV, oil, microorganism, abrasion, acid & alkaline; Flame free, flexible, easy to strip, extremely mechanical robust, long lifespan etc



We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!


About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.
