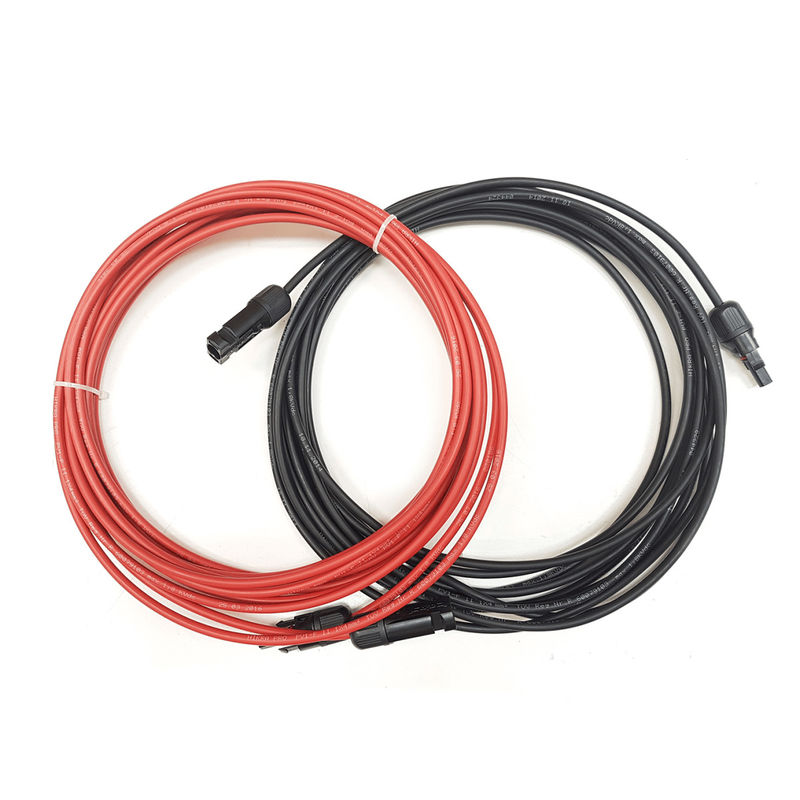

Cold Abrasion PV Solar Cable Halogen Free 16MM2 25MM2 Long Lifespan
Application
Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of different climate outdoor installation, and can adapt to the dry and wet indoor working environment
Construction
| Core Conductor | Tinned annealed copper (stranded core) |
| Popular sizes | 1 core x2.5/4.0/6.0/10.0/16.0/25.0/35.0mm2 |
| Cable conductor | Stranded tinned annealed copper |
| Insulation | Electron-beam cross-linked Polyolefin(XLPO) |
| Jacket | XLPO/ PE (black, red) |
| Other specs | a) Temperature rating: -40C up to +120C |
| b) Fire performance: IEC 60332-1, UL1581 VW-1 | |
| c) Approval: TUV Rheinland 2PfG 1169 1.5mm2 to 50mm2 | |
| d) High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant | |
| e) Voltage suitable: 600-1000V |
Advantage:
With high resistance against heat, cold, ozone, UV, oil, microorganism, abrasion, acid & alkaline; Flame free, flexible, easy to strip, extremely mechanical robust, long lifespan etc
PV Cable Market Future:
Right now our solar cables are welcomed SUPER HOT at UK, Belgium, Germany, Huangrey, France, Australia, India etc
Solar system industry is very hot recently and more in the future, now almost all the countries goverment are now encouraging and supporting this industry to reduce CO2 releasing
Technical Parameter
| Section Area (mm2) |
External Diameter (mm) |
Current Carring Capacity (A) |
| 4 | 6.1 | 55 |
| 6 | 7.2 | 70 |
| 10 | 9.0 | 98 |
| 16 | 10.2 | 132 |
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
Our products are sold all over the world, you can rest assured.
