Home ProductsSolar PV CableProfessional Solar PV Wire , 6mm Solar Cable 2 Core CE TUV Certification

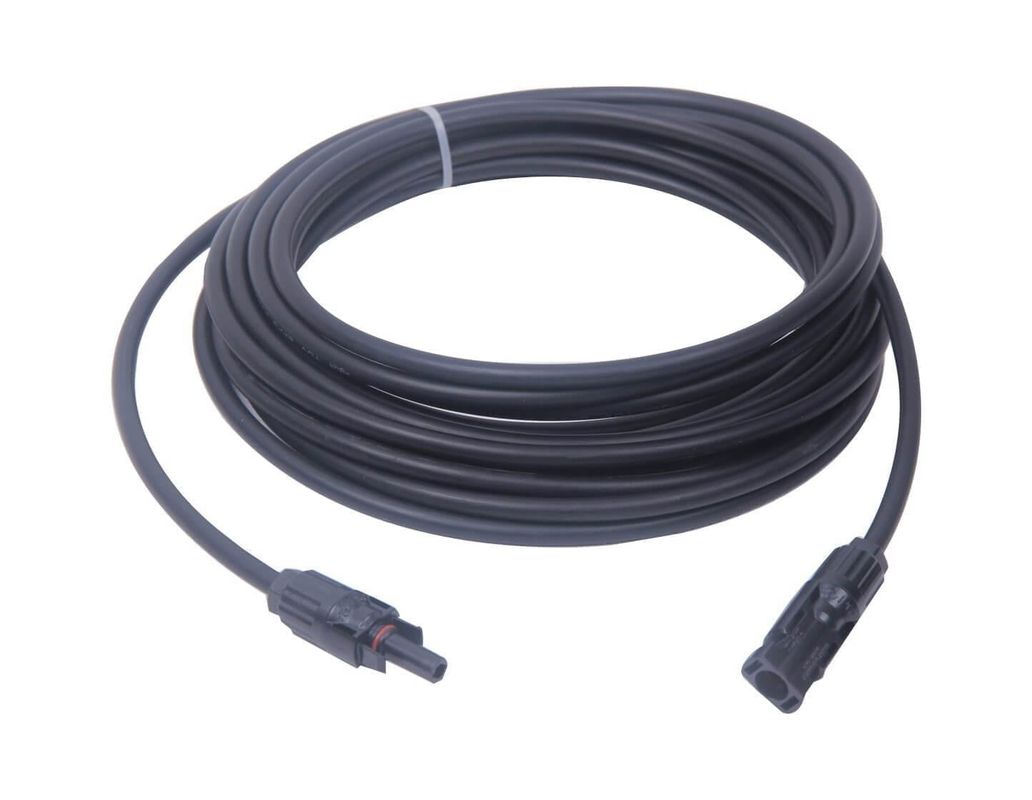

Professional Solar PV Wire , 6mm Solar Cable 2 Core CE TUV Certification
Professional Solar PV Wire , 6mm Solar Cable 2 Core CE TUV Certification

Professional Solar PV Wire , 6mm Solar Cable 2 Core CE TUV Certification

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: TUV,ISO,CE,IEC
Payment & Shipping Terms:
Minimum Order Quantity: 5000meter
Price: US$0.9~7.95 per meter
Packaging Details: Wooden drums
Delivery Time: Two weeks
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000Kilometer per Month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Model Name: Solor Cable Conductor Type: Flexible Tinned Copper
Size: 2x2.5mm2 2x4mm2 2x6mm2 Nos.of Core: 2 Cores
Insulation Color: Any Color Warranty: 2 Years
High Light:

solar pv wire

,

solar cable wire

Product Description

Professional XLPO Insulated Solar PV Wire 2 Core CE TUV Certification





Construction



1. Core Conductor: Tinned annealed copper (stranded core)

2. Cable conductor: stranded tinned annealed copper

3. Insulation: electron-beam cross-linked Polyolefin(XLPE)

4. Jacket:XLPE/ PE (black, red)

5. High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant



Application



Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of different climate outdoor installation, and can adapt to the dry and wet indoor working environment



Advantage



With high resistance against heat, cold, ozone, UV, oil, microorganism, abrasion, acid & alkaline; Flame free, flexible, easy to strip, extremely mechanical robust, long lifespan etc



Technical parameter





Section Area
(mm2)		 Insulation Thickness
(mm)		 Sheath Thickness
(mm)		 External Diameter
(mm)		 Current Carring Capacity
(A)
2x4 0.7 0.8 6.1x12.5 55
2x6 0.8 0.9 7.2x14.5 70
2x10 0.9 1.1 9.0x18.5 98





We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
