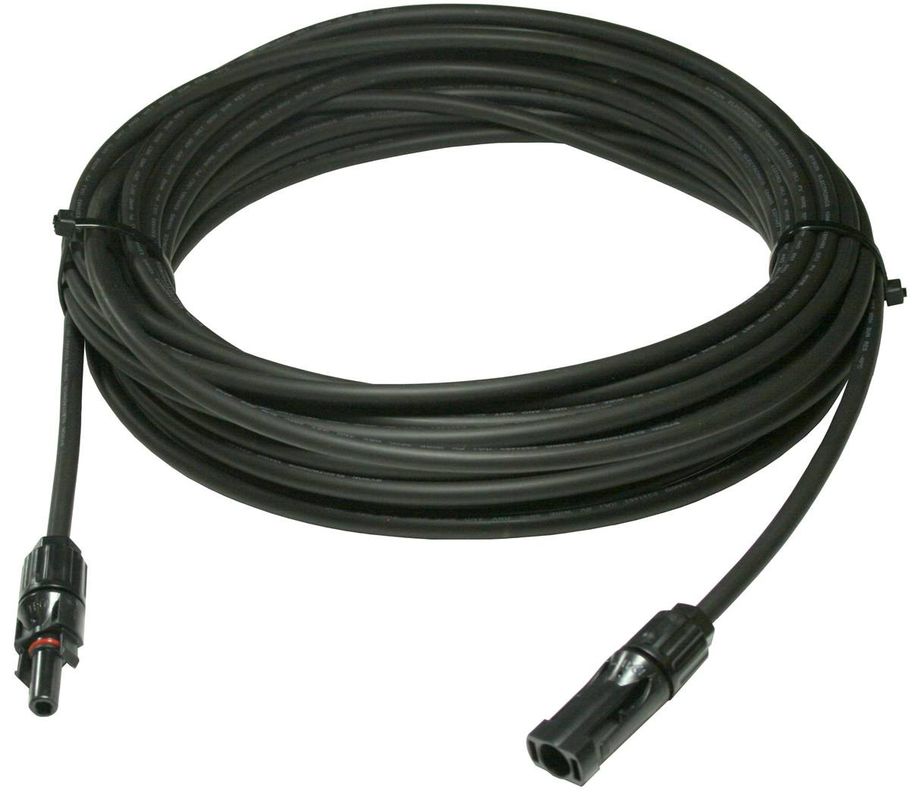

Industrial Solar PV Cable 600V - 1000V Electron Beam Cross Linked Polyolefin Insulation

Industrial Solar PV Cable 600V - 1000V Electron Beam Cross Linked Polyolefin Insulation

  • High Light

    solar cable wire

    ,

    dc cable for solar pv

  • Model Name
    PV Solar Cable
  • Conductor Type
    Tinned Copper
  • Size
    4mm2 6mm2 10mm2 16mm2
  • Nos.of Core
    Single Core
  • Insulation Color
    Any Color
  • Warranty
    2 Years
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    TUV,ISO,CE,IEC
  • Minimum Order Quantity
    3000meter
  • Price
    US$0.3~5.7 per meter
  • Packaging Details
    Rolls
  • Delivery Time
    7 days
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    35000Kilometer per Month

Industrial Solar PV Cable 600V - 1000V Electron Beam Cross Linked Polyolefin Insulation

Industrial Solar Panel 600V - 1000V PV Wire Electron Beam Cross Linked Polyolefin Insulation





Application



Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of different climate outdoor installation, and can adapt to the dry and wet indoor working environment



Construction



Core Conductor Tinned annealed copper (stranded core)
Popular sizes 1 core x2.5/4.0/6.0/10.0/16.0/25.0/35.0mm2
Cable conductor Stranded tinned annealed copper
Insulation Electron-beam cross-linked Polyolefin(XLPO)
Jacket XLPO/ PE (black, red)
Other specs a) Temperature rating: -40C up to +120C
b) Fire performance: IEC 60332-1, UL1581 VW-1
c) Approval: TUV Rheinland 2PfG 1169 1.5mm2 to 50mm2
d) High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant
e) Voltage suitable: 600-1000V



Advantage:

With high resistance against heat, cold, ozone, UV, oil, microorganism, abrasion, acid & alkaline; Flame free, flexible, easy to strip, extremely mechanical robust, long lifespan etc



Technical Parameter



Section Area
(mm2)
External Diameter
(mm)
Current Carring Capacity
(A)
4 6.1 55
6 7.2 70
10 9.0 98
16 10.2 132



We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
