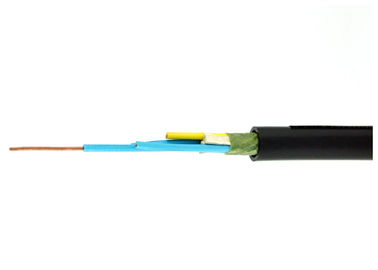

Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench

MOQ: 1000m
Price: USD 0.4 To 10.5 per Meter
Standard Packaging: 100/200 Meters per Rolls or Wooden Steel Drums
Delivery Period: 10-15 Days
Supply Capacity: 8KM per Day
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
CE/KEMA/CCC/TUV
Insualtion:
PVC
Sheath:
PVC
Material:
Copper
Conductor Type:
Class1 Or Class2
Cores No.:
2 To 61
Size:
0.75mm2 To 10mm2
Conductor Shape:
Round
Color:
Black Or Grey
Highlight:

multicore flexible cable

,

multicore power cable

Product Description

Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench



Construction:



Conductor: Solid or Stranded Copper Conductor

Insualtion: PVC

Sheath: PVC



Standard:



IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request





Technical data



Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D





Certificates



CE, RoHS, CCC, KEMA and more others at request



Application:



Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.





Specifications:



Cross-Sectional
Area mm2		 Thickness of
Insulation		 Thickness of
Sheath		 Overall Diameter Min resistance of
insulation at
70℃ MΩ/km		 Max.D.C resistance
of at 20℃
MΩ/km		 Approx Weight
(kg/km)
min max
2x0.75 0.6 1.2 6.7 8.1 0.012 24.5 59
2x1 0.6 1.2 7 8.5 0.011 18.1 67
2x1.5 0.7 1.2 7.9 9.5 0.011 12.1 86
2x2.5 0.8 1.2 9 10.9 0.01 7.41 120
2x4 0.8 1.2 9.9 11.9 0.0085 4.61 167
2x6 0.8 1.2 10.8 13.1 0.007 3.08 220
3x0.75 0.6 1.2 7.1 8.5 0.012 24.5 71
3x1 0.6 1.2 7.4 8.9 0.011 18.1 82
3x1.5 0.7 1.2 8.3 10 0.011 12.1 108
3x2.5 0.8 1.2 9.5 11.5 0.01 7.41 154
3x4 0.8 1.2 10.5 12.4 0.0085 4.61 210
3x6 0.8 1.2 11.5 13.9 0.007 3.08 310
