Professional Control Flexible Wire Cable Eco Friendly CE KEMA Certification

MOQ: 1000m
Price: USD 0.4 To 10.5 per Meter
Standard Packaging: Wooden Steel Drums
Delivery Period: 10-15 Days
Supply Capacity: 8KM per Day
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
CE/KEMA/CCC/TUV
Screen:
Tinned Copper Wire
Hardness:
Flexible
Insulation:
PVC
Conductor Type:
CLass 5
Screen Type:
Brain Screen
Bending Radius:
12.O.D
Highlight:

multicore flexible cable

,

multi core electrical cable

Product Description

Professional Control Flexible Wire Cable Eco Friendly CE KEMA Certification



Descriptions:



Conductor: Flexible Copper Conductor

Insualtion: PVC

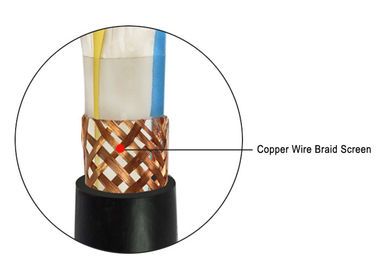

Screen: Tinned Copper Wire Brain Screen

Sheath: PVC



Operating characteristics



Rated voltage: U0 / U is 450 / 750V.
Conductor wire core long-term working temperature is 70 ℃, 95 ℃ two types of cable laying temperature not lower than 0 ℃.
Recommended cable bending radius as follows:
Non-armored cable should be not less than 6 times the cable diameter;
Armor or copper tape shielded cable, shall not be less than 12 times the cable diameter;
Shielded flexible cable, not less than 6 times the cable diameter



Standard:





IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request



Certificates



CE, RoHS, CCC, KEMA and more others at request



Application:



Suitable for industrial and mining enterprises, energy and transportation sectors, for rated voltage 450/750 volts control, protection PVC insulated lines and other occasions, and PVC sheathed control cable.



Why We Choose Tinned Copper Wire Screen



Softer, Have Better mechanical and anti-oxidation properties, easier to weld  than Copper Wire Screen.
