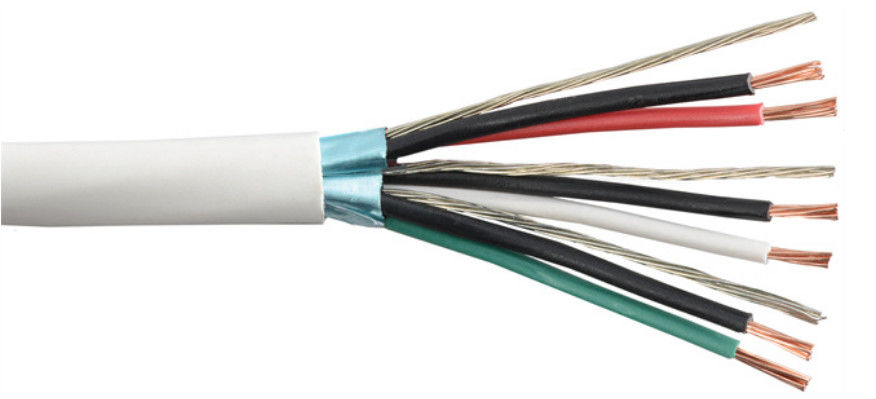

0.5mm2 0.75mm2 Shielded Instrument Cable For Signal Transmission
Application:
Shielded Instrument Cable can be used as measuring, monitoring and control cable in machine tool manufacturing, complete equipment installation engineering, power station, Fixed installation of heating and air conditioning systems, refrigeration equipment, office automation equipment, lighting circuits, and automation equipment.
Description:
| Conductor | Material | Copper, tinned copper |
| Type | Solid, stranded,flexible | |
| Insulation | Material | PE/XLPE/PVC |
| Shield | Material | Copper tape wrapping indivadual and overall screen |
| Outer Sheath | Material | Flame retardant PVC/PE |
Character and Relevant Parameters:
1. Long-term service temperature of the cable conductor: 90°C
2. Rated voltage: 300/500V,450/750V ,600/1000V.
3. Cable lying temperature ≥ 0°C
4. Cores(pair/triple): 1~19
5. Minimun bending radius:≥ out diameter of cable 6 times
Type Optional:
| No. | Optional Type | Instrumenation Cable Description |
| 1 | DJYPVP22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel tape armor |
| 2 | DJYVP2-22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping overall shielding, steel tape armor |
| 3 | DJYP2V22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual shielding, steel tape armor |
| 4 | DJYP2VP2-22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual & overall shielding, steel tape armor |
| 5 | DJYVP3-22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding, steel tape armor |
| 6 | DJYP3V22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding, steel tape armor |
| 7 | DJYP3VP3-22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual & overall shielding, steel tape armor |
| 8 | DJYVP32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided overall shielding, steel wire armor |
| 9 | DJYPV32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel wire armor |
| 10 | DJYPVP32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel wire armor |
| 11 | DJYVP2-32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping overall shielding, steel wire armor |
| 12 | DJYP2V32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual shielding, steel wire armor |
| 13 | DJYP2VP2-32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping overall & individual shielding, steel wire armor |
| 14 | DJYVP3-32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding, steel wire armor |
| 15 | DJYP3V32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding, steel wire armor |
| 16 | DJYP3VP3-32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall & individual shielding, steel wire armor |
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
Our products are sold all over the world, you can rest assured.
