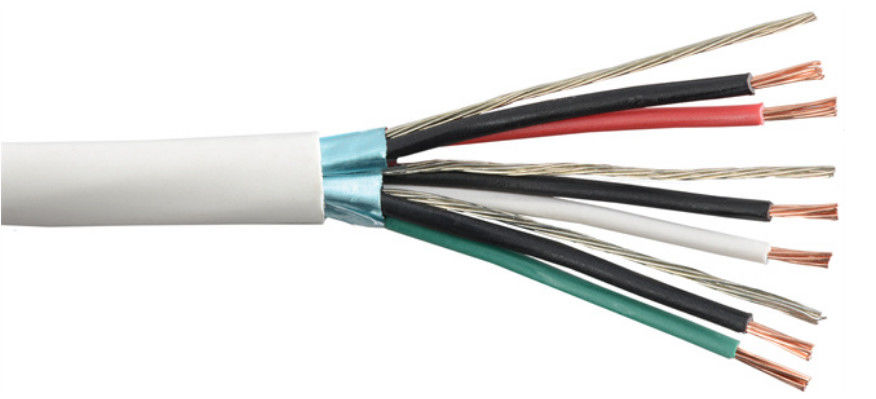

PVC Copper 2 * 0.75mm2 Shielded Instrument Cable
One-cable cable provides 300V UL instrument cable. The cable has 16 AWG or 18 AWG conductors with 1, 2, 4, or 8 twisted-pair wires, respectively, and integral shielding, or 2, 4 or 8 independently shielded twisted pairs with overall shielding.
The overall shielded cable has a 100% coverage aluminum/polyester foil shield and a tinned copper continuous drain wire to prevent external electrical noise interference.
The cables with individual shielding pairs and overall shielding are shielded by aluminum/polyester foil with a coverage rate of 100%, and are equipped with independent tinned copper continuous drain wires to maximize resistance to external electrical noise interference and wire pairs Crosstalk between.
The individual conductor pairs are bare copper stranded wires, with black and white high-quality PVC insulation, and with alphanumeric markings for easy identification. The cable jacket is black high-grade PVC, resistant to sunlight and moisture.
A convenient 22 AWG orange PVC insulated communication conductor (talk line) is included in the multi-pair cable.
| |
The numbers of Conductor &Sectional area/m㎡ |
The specified value of Insulation thickness/
mm |
The specified value of sheath thickness/
mm |
The minimumin number of sulation resistance on 70 ℃ |
| 1 |
2*0.75 |
0.6 |
0.8 |
0.011 |
| 2 |
2*1 |
0.6 |
0.8 |
0.01 |
| 3 |
2*1.5 |
0.7 |
0.8 |
0.01 |
| 4 |
2*2.5 |
0.8 |
1 |
0.009 |
| 5 |
3*0.75 |
0.6 |
0.8 |
0.011 |
| 6 |
3*1 |
0.6 |
0.8 |
0.01 |
| 7 |
3*1.5 |
0.7 |
0.9 |
0.01 |
| 8 |
3*2.5 |
0.8 |
1.1 |
0.009 |
| 9 |
4*0.75 |
0.6 |
0.8 |
0.011 |
| 10 |
4*1 |
0.6 |
0.9 |
0.01 |
| 11 |
4*1.5 |
0.7 |
1 |
0.01 |
| 12 |
4*2.5 |
0.8 |
1.1 |
0.009 |
| 13 |
5*0.75 |
0.6 |
0.9 |
0.011 |
