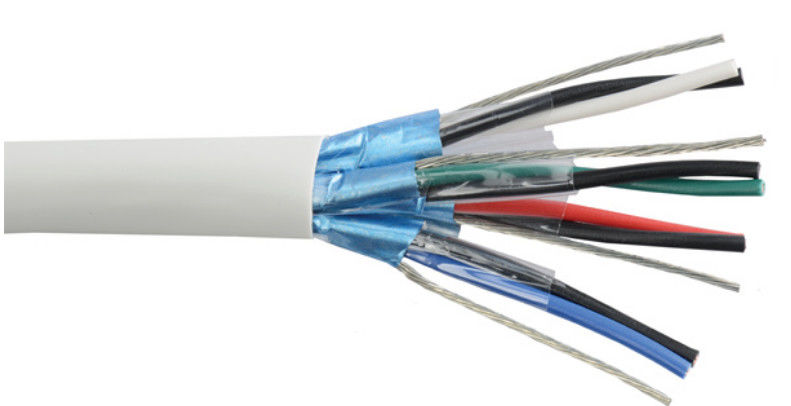

Any Color Multicore Instrument Cable Anti Aging Single Pair Triple Core

Any Color Multicore Instrument Cable Anti Aging Single Pair Triple Core

  • High Light

    instrument cable wiring

    ,

    multi pair instrument cable

  • Model Name
    Shielded Instrument Cable
  • Conductor Type
    Copper Or Tinned Copper
  • Size
    0.5mm2,0.75mm2,1.0mm2,1.5mm2
  • Type Of Cores
    Single, Pair, Triple
  • Insulation Color
    Any Color
  • Flame Retardant
    Available
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ISO,CE,IEC,TUV,KEMA
  • Minimum Order Quantity
    2000
  • Price
    USD 2.1~56.9/meter
  • Packaging Details
    Wooden drum
  • Delivery Time
    15 work days
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    8000kilometer/Month

Any Color Multicore Instrument Cable Anti Aging Single Pair Triple Core

Fire Proof Shielded Instrument Cable Anti Aging Single Pair Triple Core

Application:

Shielded Instrument Cable is used as signal transmission and connection of checking appliances of distribution system, computer system and automatic system of power.
For use in installations designed to connect electrical instrumentation circuits and provide communication services in and around process plants. Suitable for direct burial applications.

Description:



ConductorMaterialCopper, tinned copper
TypeSolid, stranded,flexible
InsulationMaterialPE/XLPE/PVC
ShieldMaterialCopper tape wrapping indivadual and overall screen
Outer SheathMaterialFlame retardant PVC/PE



Character and Relevant Parameters:

1. Long-term service temperature of the cable conductor: 90°C
2. Rated voltage: 300/500V,450/750V ,600/1000V.
3. Cable lying temperature ≥ 0°C
4. Cores(pair/triple): 1~19
5. Minimun bending radius:≥ out diameter of cable 6 times

Type Optional:

No.Optional TypeInstrumenation Cable Description
1DJYPVP22Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel tape armor
2DJYVP2-22Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping overall shielding, steel tape armor
3DJYP2V22Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual shielding, steel tape armor
4DJYP2VP2-22Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual & overall shielding, steel tape armor
5DJYVP3-22Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding, steel tape armor
6DJYP3V22Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding, steel tape armor
7DJYP3VP3-22Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual & overall shielding, steel tape armor
8DJYVP32Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided overall shielding, steel wire armor
9DJYPV32Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel wire armor
10DJYPVP32Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel wire armor
11DJYVP2-32Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping overall shielding, steel wire armor
12DJYP2V32Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual shielding, steel wire armor
13DJYP2VP2-32Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping overall & individual shielding, steel wire armor
14DJYVP3-32Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding, steel wire armor
15DJYP3V32Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding, steel wire armor
16DJYP3VP3-32Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall & individual shielding, steel wire armor


Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
