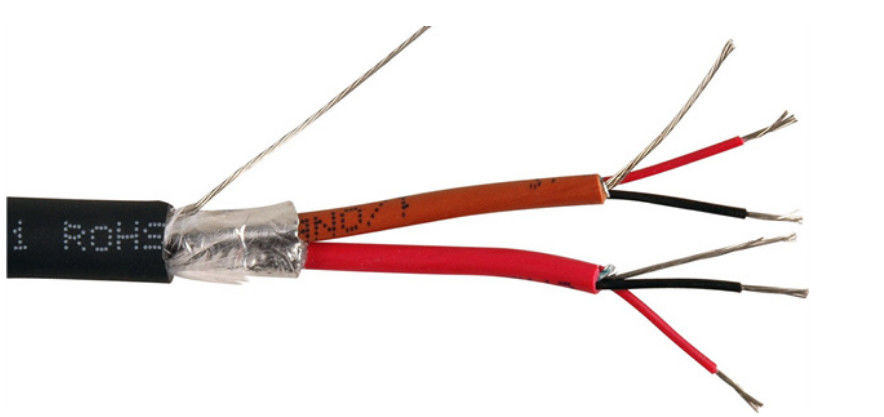

Eco Friendly Soft Shielded Instrument Cable Armoured Aluminum Foil Screen

Eco Friendly Soft Shielded Instrument Cable Armoured Aluminum Foil Screen

Products - Shielded Instrument Cable
  • High Light

    instrument cable wiring

    ,

    multi pair instrument cable

  • Insulation Color
    Customization
  • Model Name
    Shielded Instrument Cable
  • Conductor Type
    Copper
  • Cores Type
    Single,pair,triple
  • Size
    0.5,0.75,1.0,1.5sqmm
  • Sheath Color
    Black Or Customization
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ISO,CE,IEC,TUV,KEMA
  • Minimum Order Quantity
    2000
  • Price
    USD 0.5~5.9/meter
  • Packaging Details
    In cable drums or on roll
  • Delivery Time
    11 work days
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    10000kilometer/Month

Eco Friendly Soft Shielded Instrument Cable Armoured Aluminum Foil Screen

  • Eco Friendly Soft Shielded Instrument Cable Armoured Aluminum Foil Screen
Get Price Contact Now

Professional Shielded Instrument Cable Individual / Overall Copper Wire Braiding



Instrument cable features



1. Conductor: Plain annealed copper, Copper/Copper tinned
2. Sizes: 0.5 mm² solid, 1.0 mm² solid, 0.5 mm² flexible, 0.75 mm² flexible or 1.5mm²stranded
3. Insulation: XLPE/PE/PVC
4. Color code: black / white / red; with numbered tape under separator tape of the triple screen
5.Triple screen: 24 µm aluminium / PETP tape over tinned copper drain wire, 0.5 mm²
6. Wrapping: at least 1 layer of plastic tape
7. Collective screen: 24 µm aluminium / PETP tape over tinned copper drain wire, 0.5 mm²
8. Bedding: zero halogen flame retardant compound LSZH, black
9. Armour: Steel Wire Armored, Galvanized Round Steel Wire, Without Armor
10. Outer sheath: zero halogen flame retardant compound LSZH, black or blue for intrinsically safe systems
11. Shield: Copper Wire Braid, Al-foil Individual and Overall Screen



Use condition



The cable is approved to operate upon fixed-installation or moveable using in ambient temperature from -40 ℃ to 50 ℃ , relative humidity not larger than 80%and operating temperature of core not higher than 70 ℃ as well as avoiding direct high-temperature radiation or contact. The temperature shall never less than 0℃ when the cable being laid. Permissible bending radius:not less than 6 times of overall diameter for unarmored cable;not less than 12 times of overall diameter for armored or screened cable;not less than 6 times of overall diameter for screened flexible cable.





PACKING AND SHIPPING

We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.


We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!


About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.





FAQ


Q: How long does it take to get a quote back?


A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.


Q: What warranties do your products carry?

Q: Do you sell other products besides wire and cable?


A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
