|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||500m|
|Packaging Details:||wooden drum ,drum size:1.25x1.25x0.75m, 20 ft container can load 12 packages|
|Delivery Time:||10-15 days|
|Payment Terms:||L/C, T/T, L/C, T/T, Western Union|
|Color Of Insulation:||Any Colour||Sample:||Free|
|Nominal Area Of Conductor:||6mm2 To 630mm2||Warranty:||2 Years|
|Conductor Type:||Stranded Copper Conductor(class2)||Standard:||IEC 60502-1,IEC60228|
low voltage power cable,

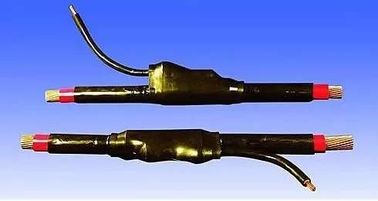

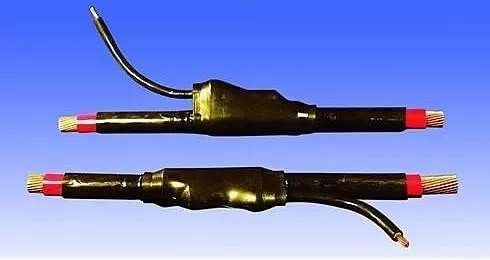

Single Core Prefabricated Branch Cable Flame Resistant Main cable 1 x 185 mm2
Prefab branch cable is a new kind of low voltage distribution products, the prefab style can decrease the labor intensity greatly, shorten worktime, reduce cost greatly. The products is widely used at mid and high building highway, bridges, channels, high level workshop etc with its super performance.
This cable is used for urban networks. It can be installed aerially, in conduit, on open trays and in underground ducts.
Plain annealed copper, XLPE insulation, unarmoured or aluminium wires armoured, PVC sheathed cable
Main technical performance:
Ac voltage test: (put it in water for 1 hour) : 3.5kv /5min.
Dc resistance test: according to iec 60502-1997 standard
Insulation resistance test: 20 ℃ when meet not less than 200 m Ω insulation resistance
125 times thermal cycling: tapping temperature is not more than 70 ℃
Conductor breaking force: not less than 80% of the main cable
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
