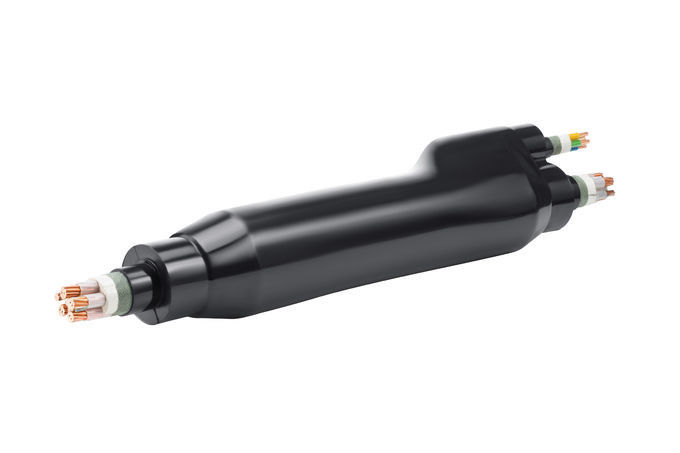

Prefabricated Branch Single Core Cable Kabel Listrik Bercabang With Natural Black Jacket
| Name | fire resistant prefabricated branch cable Za-FZYJV | |
| Voltage Rate | 0.6/1kv | |
| Application | Applicable for high buildings,plains and factories, tunnel construction and lighting and can be alternatively used for small/middle capacity bus-ducts | |
| Standard | IEC 60502 | |
| Constructions | Conductor: | Cu conductor |
| Insulation: | xlpe | |
| Sheath | pvc | |
| Combustion property code |
Z-Flame-resistant N-Fire-resistant w-Halogen free D-Low smoke |
|
| Max. Operating Temperature | 90℃ | |
| Remarked | Main cable + branch cable | |
Brief introduction
Prefab branch cable is a new kind of low voltage distribution products, the prefab style can decrease the labor intensity greatly, shorten worktime, reduce cost greatly. The products is widely used at mid and high building highway, bridges, channels, high level workshop etc with its super performance.
Application
This cable is used for urban networks. It can be installed aerially, in conduit, on open trays and in underground ducts.
Construction
Plain annealed copper, XLPE insulation, unarmoured or aluminium wires armoured, PVC sheathed cable
Main technical performance:
Ac voltage test: (put it in water for 1 hour) : 3.5kv /5min.
Dc resistance test: according to iec 60502-1997 standard
Insulation resistance test: 20 ℃ when meet not less than 200 m Ω insulation resistance
125 times thermal cycling: tapping temperature is not more than 70 ℃
Conductor breaking force: not less than 80% of the main cable
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
Our products are sold all over the world, you can rest assured.
