Flame Retardant Instrument Cable Wiring , Steel Tape Armoured Cable

Products

Welding Torch Cable

Mr. Aric

atwood.lee@hold-one.com

86-- 18724796885

Contact Now

Flame Retardant Instrument Cable Wiring , Steel Tape Armoured Cable

MOQ:	3000
Price:	USD 1.6~5.49/meter
Standard Packaging:	cable drums
Delivery Period:	10 days
Payment Method:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Capacity:	15000kilometer/Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HOLD-ONE

Certification

ISO,CE,IEC,TUV,KEMA

Model Name:

Instrumentation Cable

Conductor Type:

Copper Or Tinned Copper

Size:

0.5~1.5sqmm

Cores Type:

Single, Pair Or Triple

Insulation Color:

Any Color

Warranty:

2 Years

Highlight:

instrument cable wiring

multicore instrument cable

Product Description

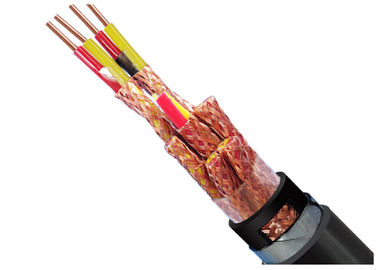

Flame Retardant Shielded Instrument Cable , Steel Tape Armoured Cable

Use condition

The cable is approved to operate upon fixed-installation or moveable using in ambient temperature from -40 ℃ to 50 ℃ , relative humidity not larger than 80%and operating temperature of core not higher than 70 ℃ as well as avoiding direct high-temperature radiation or contact. The temperature shall never less than 0℃ when the cable being laid. Permissible bending radius:not less than 6 times of overall diameter for unarmored cable;not less than 12 times of overall diameter for armored or screened cable;not less than 6 times of overall diameter for screened flexible cable.

Application

This product applies for connecting wire of electric appliance,apparatus or computer,used in distribution eqwipments with rated voltage up to and including A.C.450/750V or D.C.1000V.

Description

Conductor	Material	Copper or Tinned copper
Conductor	Type	Solid, stranded,flexible
Insulation	Material	PE, XLPE or PVC
Shield	Material	Copper wire braiding Individual and overall screen
Armored	Material	Steel tape
Outer Sheath	Material	XLPE/PVC/PE

Character and Relevant Parameters

1. Long-term service temperature of the cable conductor: 90°C

2. Rated voltage: 300/500V,450/750V ,600/1000V.

3. Cable lying temperature ≥ 0°C

4. Cores(pair/triple): 1~19

5. Minimun bending radius:≥ out diameter of cable 6 times

Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
