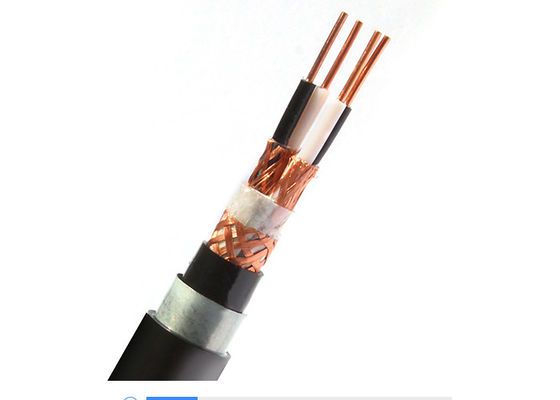

SWA / STA Armored Instrumentation Cable , Fire Retardant Cable Eco Friendly
Application
Shielded Instrument Cable is used as signal transmission and connection of checking appliances of distribution system, computer system and automatic system of power.
For use in installations designed to connect electrical instrumentation circuits and provide communication services in and around process plants. Suitable for direct burial applications.
This product applies for connecting wire of electric appliance,apparatus or computer,used in distribution eqwipments with rated voltage up to and including A.C.450/750V or D.C.1000V.
structure
| Conductor | Material | Copper, tinned copper |
| Type | Solid, stranded,flexible | |
| Insulation | Material | PE/XLPE/PVC |
| Shield | Material | Copper wire braiding indivadual and overall screen |
| Armored | Material | Steel wire or steel tape optional |
| Outer Sheath | Material | PVC/PE |
Character and Relevant Parameters
1. Long-term service temperature of the cable conductor: 90°C
2. Rated voltage: 300/500V,450/750V ,600/1000V.
3. Cable lying temperature ≥ 0°C
4. Cores(pair/triple): 1~19
5. Minimun bending radius:≥ out diameter of cable 6 times
Type Optional
| No. | Optional Type | Instrumenation Cable Description |
| 1 | DJYPVP22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel tape armor |
| 2 | DJYVP2-22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping overall shielding, steel tape armor |
| 3 | DJYP2V22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual shielding, steel tape armor |
| 4 | DJYP2VP2-22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual & overall shielding, steel tape armor |
| 5 | DJYVP3-22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding, steel tape armor |
| 6 | DJYP3V22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding, steel tape armor |
| 7 | DJYP3VP3-22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual & overall shielding, steel tape armor |
| 8 | DJYVP32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided overall shielding, steel wire armor |
| 9 | DJYPV32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel wire armor |
| 10 | DJYPVP32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel wire armor |
| 11 | DJYVP2-32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping overall shielding, steel wire armor |
| 12 | DJYP2V32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual shielding, steel wire armor |
| 13 | DJYP2VP2-32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping overall & individual shielding, steel wire armor |
| 14 | DJYVP3-32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding, steel wire armor |
| 15 | DJYP3V32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding, steel wire armor |
| 16 | DJYP3VP3-32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall & individual shielding, steel wire armor |
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
