Qingdao Yilan Cable Co., Ltd.

Single Core 500mm XLPE Insulated Copper Power Cable 35KV

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: CE/IEC/KEMA/VDE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Iron-wooden Drum or Whole Wooden Drum
Delivery Time: 8-15 days
Payment Terms: L/C, T/T
Supply Ability: 100km per Month
  • Detail Information
  • Product Description

Detail Information

Name: Copper Conductor Cable Conductor Material:: Copper
Standard: IEC 60502-1 Outer Sheath:: PVC
Color: Customized Type: XLPE Underground Cable
High Light:

XLPE Insulated Copper Power Cable

,

Single Core 500mm Copper Power Cable

,

Insulated Copper Power Cable 35KV

Product Description

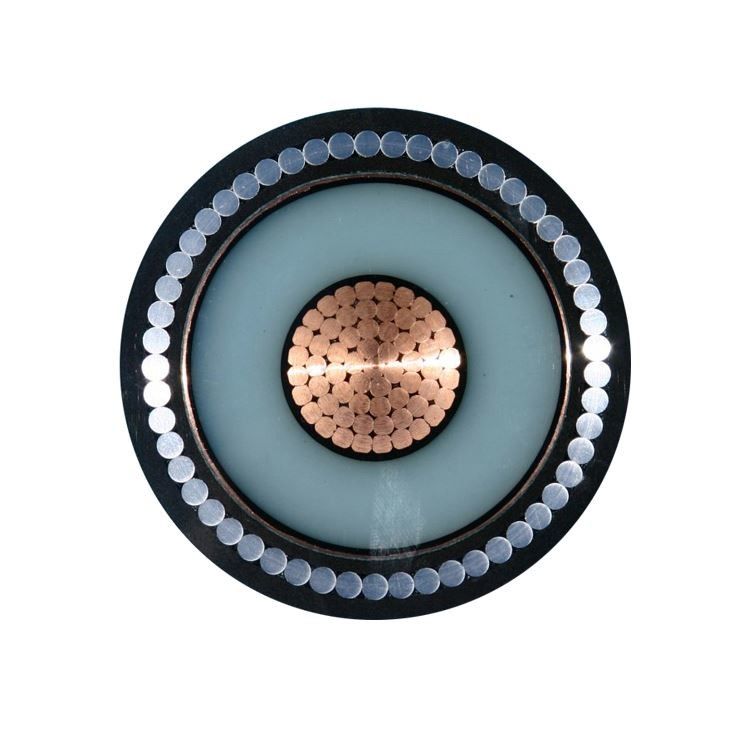

26/35KV Single Core 500mm XLPE Insulated Copper Power Cable



What is XLPE cable?



The basic material of XLPE is polyethylene, which is chemically converted into cross-linked polyethylene (XLPE) through the cross-linking reaction of organic peroxides. The cross-linking method of polyethylene was developed in the United States in the 1950s and has been continuously developed to be applied to higher voltages since then. Higher voltages are increasingly required, and 500kV XLPE cables have been commercialized.



Conductor type



At present, copper (Cu) and aluminum (Al) are the main materials for XLPE conductors.

(1) Copper (Cu)
Copper (Cu) conductors have advanced electrical characteristics, processability and economic benefits. Therefore, they are used in most underground conductor materials. It is worth noting that the purity of electrolytic copper needs to reach 99.96%~99.86%.
(2) Aluminum (Al)
Since aluminum is about one-third lighter than copper, it is easier to handle. Its electrical conductivity is about two-thirds of copper, but it is more economical. Due to these characteristics, Al is the most widely used material after copper.



Benefits of XLPE



Plastic insulation materials have the advantages of excellent insulation properties, easy wiring, connection and maintenance, so they are widely used in advanced countries. Due to the development of cross-linking technology, XLPE insulated cables can be applied to higher voltages. Recently, XLPE cables have completely replaced OF cables. The advantages of XLPE are its light weight, thermal characteristics, lower wiring costs and lower material costs.
