4 Core XLPE Insulated Cable With Fan Shaped Conductor Polypropylene Filler

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: CE/IEC/KEMA/VDE
Payment & Shipping Terms:
Minimum Order Quantity: 200m
Price: USD 0.25-450 Per Meter
Packaging Details: Iron wooden Drum or Wooden Drum as per request
Delivery Time: 12 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 175\ km per mongth
  • Detail Information
  • Product Description

Detail Information

Core No.: Four Core Insulation Color: Yellow,Blue Red Green Or As Per Request
Standard: IEC 60502-1,IEC 60228 Filler: Polypropylene Filler
Core Mark: Ink Number Or Color Strip Outer SheathIdentification: Ink Printing Or Embossing
Drum Length: 500 M Or As Per Request Conductor Shape: Fan Shaped Or Circular
Packing Style: Steel Wooden Drum
High Light:

xlpe electrical cable

,

xlpe power cable

Product Description

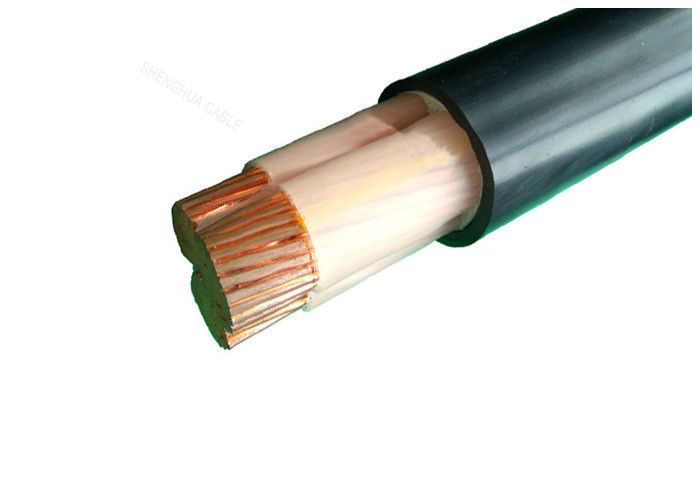

Four Core with Fan shaped conductor XLPE Copper Cable Polypropylene Filler KEMA Certificate



Description:



0.6/1kv XLPE Insulated Electric Power cable

CU/XLPE/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA. ISO. VDE



Constructions



Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Sheath : PVC type ST2 to IEC 60502, black



Applications



For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Standards



International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request



Technical data



Rated voltage: 0.6/1kV

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area below 300mm2, 140℃ when section-area above 300mm2)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%



Certificates



CE, RoHS, CCC, KEMA and more others at request



Ordering Advice



Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



Technical Specifications:



Nom. Cross-section of conductor Strands No./Dia. of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx

.Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm Lower Limit (mm) kg/km Ω /km kV/5min In air (A) Direct In soil(A)
4 × 4 1/2.25 0.7 1.8 13.0 253 4.61 3.5 34 45
4 × 6 1/2.76 0.7 1.8 14.0 337 3.08 3.5 43 57
4 × 10 7/1.38 0.7 1.8 17.0 501 1.83 3.5 60 77
4 × 16 7/1.78 0.7 1.8 20.0 778 1.15 3.5 83 105
4 × 25 7/2.14 0.9 1.8 23.0 1160 0.727 3.5 105 125
4 × 35 7/2.52 0.9 1.8 25 1554 0.524 3.5 125 155
4 × 50 10/2.52 1.0 1.8 23 2148 0.387 3.5 160 185
4 × 70 14/2.52 1.1 1.8 27 2928 0.268 3.5 200 225
4 × 95 19/2.52 1.1 1.9 31 3854 0.193 3.5 245 270
4 × 120 24/2.52 1.2 2.0 33 4925 0.153 3.5 285 310
4 × 150 30/2.52 1.4 2.2 38 6238 0.124 3.5 325 345
4 × 185 37/2.52 1.6 2.3 42 7562 0.0991 3.5 375 390
4 × 240 48/2.52 1.7 2.5 47 9836 0.0754 3.5 440 450
4 × 300 61/2.52 1.8 2.6 52 12550 0.0601 3.5 505 515
4 × 400 61/2.97 2.0 3.1 66 15929 0.0470 3.5 570 575

























































Packing and Shipping



        We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.



Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
