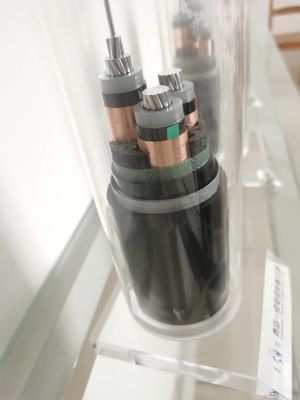

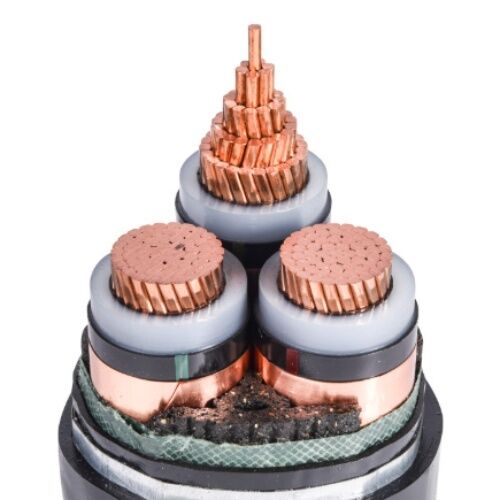

IEC 60502-1 PVC Sheathed Armored Copper Cable For Power Grids

IEC 60502-1 PVC Sheathed Armored Copper Cable For Power Grids

MOQ: Negotiable
Price: Negotiable
Standard Packaging: Iron-wooden Drum or Whole Wooden Drum
Delivery Period: 8-15 days
Payment Method: L/C, T/T
Supply Capacity: 100km per Month
Detail Information
Place of Origin
China
Brand Name
HOLD-ONE
Certification
CE/IEC/KEMA/VDE
Name:
Copper Conductor Cable
Conductor Material::
Copper
Standard:
IEC 60502-1
Outer Sheath::
PVC
Color:
Customized
Type:
XLPE Underground Cable
Highlight:

KEMA Armored Copper Cable

,

IEC 60502-1 Armored Copper Cable

,

xlpe insulated pvc sheathed cable

Product Description

PVC sheathed power cable:



Polyvinyl chloride insulated power cables not only have high mechanical strength, good environmental stress resistance, good electrical properties and chemical corrosion resistance, but also have a simple structure, light weight and easy use. It is suitable for transmission and distribution lines with AC rated voltage U0/U up to 0.6/1kV.
The main feature of flame-retardant PVC power cables is that they are not easy to catch fire, or the continuous burning of the cable is very limited during fire. It is suitable for places where multiple cables are closely laid, such as power stations, subways, tunnels, high-rise buildings, large factories, mines, oil fields, and coal mines.



Physical and Electrical Characteristics



No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
  Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139

164





Basic Information


Model: YJV YJLV VV VLV VY VLY VV22 VV23 VV33 etc.
Material shape: suitable for round wire
Scope: power grid and all industries
Certificate: ISO9001, ISO14001, CCC, CE
Specifications: 0.5mm2-630mm2
Applications: power grids, transmission lines, construction, railway transportation, chemical plants, telecommunications, petroleum industry, equipment manufacturing, instrumentation industry, etc.

Voltage: 35KV, 10KV, 0.6/1KV, 450/750V, 300/500V
Current: AC&DC
Insulation material: XLPE, PVC, etc.
Sheath material: XLPE, PVC, etc.
Material shape: round wire



Application


1. The rated voltage U0/U is 0.6/1kV to 26/35kV.
2. Under normal operation, the maximum temperature of the conductor is 90oC.
3. The maximum temperature of the conductor under short circuit (the longest duration does not exceed 5s) does not exceed 250oC.
4. The minimum installation environment temperature is not less than 0oC.
The installation bending radius is not less than the following specified value:
Single core unarmored cable: 20D
Single core armored cable: 15D
3-core non-armoured cable: 15D
3-core armored cable: 12D
