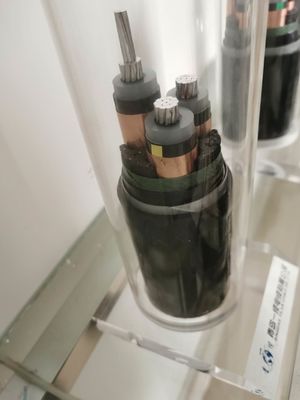

Copper Conductor PVC Layer 25mm2 XLPE Insulated Cable

Copper Conductor PVC Layer 25mm2 XLPE Insulated Cable

  • High Light

    PVC layer XLPE Insulated Cable


    25mm2 XLPE Insulated Cable


    Copper Conductor XLPE Insulated Cable

  • Name
    Copper Conductor Cable
  • Conductor Material
  • Standard
    IEC 60502-1
  • Outer Sheath
  • Color
  • Type
    XLPE Underground Cable
  • Place of Origin
  • Brand Name
  • Certification
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Iron-wooden Drum or Whole Wooden Drum
  • Delivery Time
    8-15 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100km per Month

Copper Conductor PVC Layer 25mm2 XLPE Insulated Cable

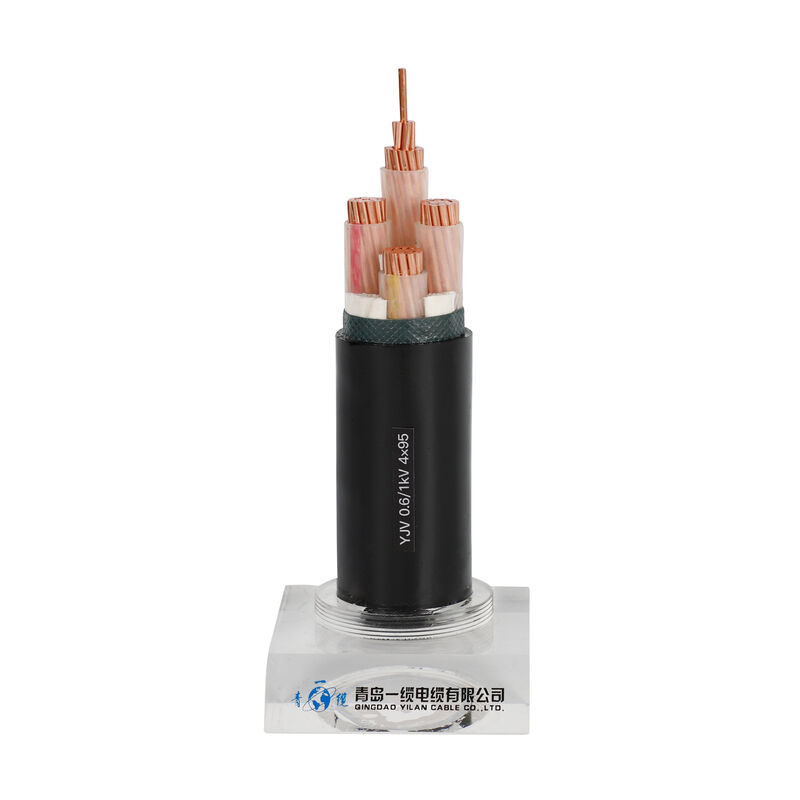

PVC XLPE insulated power cable 25mm²


PVC XLPE insulated power cable:

PVC XLPE insulated power cables are suitable for transmission and distribution lines with AC rated voltage Uo / U not exceeding 0.6 / 1kV.
For outdoor and indoor installation in a humid and humid environment, it should be placed directly on the ground where there is excessive mechanical stress in the inclined and moving terrain, in a vertical or inclined place and in a position that is easy to slide.
The main types of power cables YJV22 / YJV32 indicate:
YJ: XLPE insulation
V: PVC insulation
V: PVC sheath
22: Galvanized steel tape armor
32: Galvanized steel wire armor


Physical and Electrical Characteristics


No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139





Conductor: Ordinary round stranded copper conductor, in line with IEC 60228 level 2
Insulation: PVC, XLPE
Inner layer: PVC
Armoring: wire, steel tape, aluminum wire
According to requirements, sheath: PVC meets IEC 60502, black
Note: Insulation color such as according to standard or requirement

Single core 25mm2 power cable
Conductor characteristics: copper
Insulation: Black XLPE
Insulation thickness: 0.7mm
Sheath: PVC
Sheath thickness: 1.4mm
approximately. Cable weight: 294 kg / km
Total cable diameter: 10.7mm
Maximum DC resistance at 20C: 0.727




Used as a distribution and transmission line with a rated voltage of 0.6/1kV.
Suitable for burying in the ground, laying wells and underwater. Able to withstand certain shaft tension.

International standards: IEC 60502-1, IEC 60228;
Requirements of other standards such as ASTM BS, DIN and ICEA
