Low Voltage Flame Retardant Wire , Fire Rated Armoured Cable PVC Sheathed
Low Voltage Flame Retardant Wire , Fire Rated Armoured Cable PVC Sheathed Low Voltage Flame Retardant Wire , Fire Rated Armoured Cable PVC Sheathed

Low Voltage Flame Retardant Wire , Fire Rated Armoured Cable PVC Sheathed

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: ROHS CE KEMA
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: 1~50USD/Metrer
Packaging Details: Wooden Iron Drum
Delivery Time: 15 day
Supply Ability: 20km/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Insulation: XLPE Wrapping Tape: LSOH Bending Tape
Fire Resistance: Mica-Tape Standards: IEC60332,IEC60502, IEC60228
Core: 1.2.3.4 Sheath: PVC
Conductor: Copper
High Light:

fire rated cable

,

fire resistant wire

Product Description

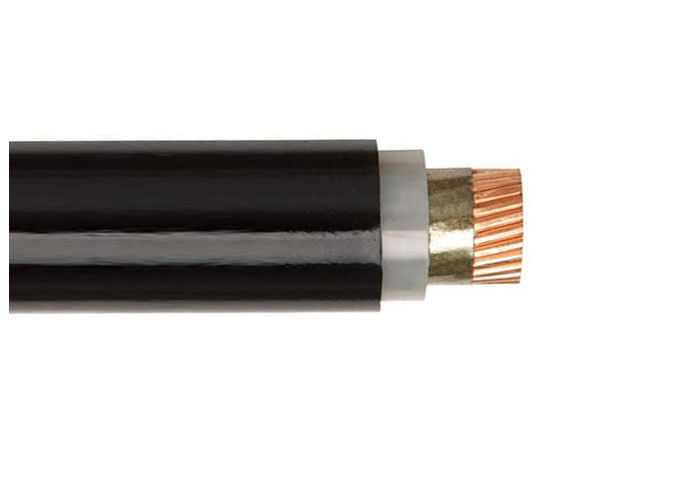

Low voltage Single-core XLPE insulated PVC sheathed copper power cable







Smoke emission: BS 7846; BS EN 50268-2; IEC 61034-2

Notes: * All conductor in accordance with IEC 60228. Compacted conductor (C.C) or non-compacted depend on order.

• Besides the above mentioned list we can also provide other sizes depending on customer’s requirement.



Standards: BS 7846; IEC 60331; BS 6387

Construction: Cu/Mica/XLPE/PVC



(1) Conductor: Plain annealed copper (class 2, normal
stranded or compact stranded)

(2) Fire barrier: Mica tape

(3) Insulation: XLPE

(4) Filler, binder and inner covering: PP

(5) Outer sheath: PVC



Cable identification

- Cores: Red, yellow, blue, black, green/yellow (by color tape, except green-yellow core)

- Outer sheath: orange or as order

Characteristics

- Voltage rate: 0.6/1kV

- Maximum conductor temperature: 900C in normal operation; 2500C in short-circuit for 5s max.

- Minimum bend radius: 12xD (twelve times overall diamerter of cable)

- Fire resistant: IEC 60331; BS 6387

- Flame retardant: BS EN 60332-1; IEC 60332-1

- Corrosive and acid gas: BS 7846; BS 50267-2-1; IEC 60754-1&2





We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!


About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.
