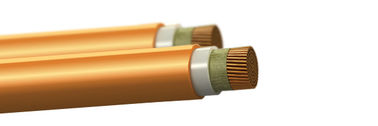

600/1000V Fire Resistant Cable XLPE Insulation Flame Retardant Sheath

600/1000V Fire Resistant Cable XLPE Insulation Flame Retardant Sheath

  • High Light

    fire resistant wire

    ,

    fire proof electrical cable

  • Conductor
    Copper
  • Insulation
    XLPE/PVC
  • Wrapping Tape
    LSOH BendingTape
  • Sheath
    LSOH Flame Retardant
  • Rated Voltage
    600/1000V
  • Cores No.
    5 Cores
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/KEMA/IEC
  • Minimum Order Quantity
    500m
  • Price
    0.5-50 USD
  • Packaging Details
    Wooden Iron Drum
  • Delivery Time
    15 working days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    5000 KM per month

600/1000V Fire Resistant Cable XLPE Insulation Flame Retardant Sheath



Fire Resistant XLPE insulation Flame Retardant sheath Power cable


Extreme temperature range: (-40oC to 105oC) can withstand the extremes of automotive environments
Fire Resistant Cable range: 0GA, 2GA, 4GA, 6GA, 8GA, 10GA, 12GA, 14GA, 15GA, 16GA, 18GA, 20GA and ultra classic strands
High strand counts High strand counts
Conductor Type Stranded 99.99% OFC (oxygen free copper), and tin plated copper,copper coated al
Material Environmentally friendly, quality, glossy material
Tinned, Silver or Nickel plated copper etc.
Fire Resistant Cable Colour: Customized
Packing carton packing, pallet packing , wooden / plastic reels



It can be widely used as power lines, control lines and signal transmission lines for electrical appliances, instruments, electronic equipment and automation devices. It can bears pulling force and pressure.


Characters:

High temperature and fire resistance,In case of load 1000V bear 950ºC burning for 3 hours.
With Character of anti-spray and anti-mechanical impact
Continous length can reach 2000M
Same fire proof class for joint
Multi-core available
High Overload capacity
Flexible
Easy Installation
enviorment protection
Moisture and Radiation Resistance,no electromagnetic interference when energized



Fire Performance of Cable Sheaths



Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.



Test Method for Fire resistance



Test Item BS6387-2013 GB/T19216 IEC60331
Refractory Test A Class 650ºC 3 hours
B Class 750ºC 3 hours
C Class 950ºC 3 hours
S Class 950ºC 20Mins
B Class 750ºC-800ºC 90Mins 750ºC 3Hours
Spray Test W Class 650ºC 15Mins N/A
Impact Test X Class 650ºC 15Mins
Y Class 750ºC 15Mins
Z Class 950ºC 15Mins
N/A


We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
