Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 601034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6-KV

Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Rated Voltage: 0.6/1KV

Range of Nominal cross section: 1 core: 1.5 mm2 ~ 300 mm2 Multi core: 0.75 mm2 ~ 35 mm2

Application:

These cables are installed to supply power to building essential services including fire alarms,

sprinkler control system, emergency and evacuation lighting and smoke control systems,

such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels

Constructions

Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound

Insulation: XLPE or LSZH compound

Sheath: LSZH compound

Core color: red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath

Max. Operating Temperature : 100 meters per roll or wooden drum or as per requirement

Production Capacity : 20 kilometer/ day

MOQ : 5000 meters for small size, 1000 meters for big size

Certificates

CE, RoHS, CCC, KEMA and more others at request

Nom. Cross-section of conductor	Insulation Thickness	Sheath	Approx.	Approx	Max. D.C. Resistance of Conductor (20°C)	Test Voltage	Current Rating
mm2	mm	Thickness	O.D.	Weight	Ω/km	A.C	Current Rating
		mm	mm	kg/km		kV/5min	In air(A)	In soil(A)
1×1.5	0.7	1.8	7.7	81	12.1	3.5	22	33
4×1.5	0.7	1.8	14.4	241	12.1	3.5	20	27
4×2.5	0.7	1.8	15.4	295	7.41	3.5	26	35
4×4	0.7	1.8	16.5	369	4.61	3.5	34	45
4×6	0.7	1.8	17.8	463	3.08	3.5	43	57
4×10	0.7	1.8	20.9	667	1.83	3.5	60	77
4×16	0.7	1.8	23.4	930	1.15	3.5	83	105
4×25	0.9	1.8	27.1	1351	0.727	3.5	105	125
4×35	0.9	1.8	29.5	1772	0.524	3.5	125	155
4×50	1	1.9	38.4	2380	0.387	3.5	160	185
4×70	1.1	2	43.2	3302	0.268	3.5	200	225
4×95	1.1	2.2	47.3	4330	0.193	3.5	245	270
4×120	1.2	2.3	52.5	5374	0.153	3.5	285	310
4×150	1.4	2.5	58.3	6655	0.124	3.5	325	345
4×185	1.6	2.7	64.7	8246	0.0991	3.5	375	390
4×240	1.7	2.9	73.1	10569	0.0754	3.5	440	450
4×2.5+1×1.5	0.7	1.8	16.5	313	7.41		26	35
4×4+1×2.5	0.7	1.8	17.7	424	4.61		34	45
4×6+1×4	0.7	1.8	19.1	535	3.08		43	57
4×10+1×6	0.7	1.8	22.1	760	1.83		60	77
4×16+1×10	0.7	1.8	25.1	1071	1.15		83	105
4×25+1×16	0.7	1.8	29	1556	0.727		105	125
4×35+1×16	0.9	1.9	31.4	1976	0.524		125	155
4×50+1×25	1	2.1	36	2689	0.387		160	185
4×70+1×35	1.1	2.2	41.1	3719	0.268		200	225
4×95+1×50	1.1	2.4	46.3	4903	0.193		245	270
4×120+1×70	1.2	2.5	51	6165	0.153		285	310
4×150+1×70	1.4	2.7	55.8	7431	0.124		325	345
4×185+1×95	1.6	2.9	62.1	9192	0.0991		375	390
4×240+1×120	1.7	3.1	68.8	11860	0.0754		440	450

Operating characteristics

1. Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C;

2. Installing temperature of cable should not be less than 0°C;

3. Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec;

4. Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)

5. Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.

4x35mm2 XLPE Insulated Power Cable Mica Tape XLPE Fire Proof Cable 0

Tags:

fire resistant wire,

fire rated cable,

fire proof electrical cable

PVC/ PE Insulated Fire Rated Cable , Fire Proof Electrical Cable Single Core IEC60332

Contact Now

FR Fire Resistant Cable 4 Cores Copper Conductor XLPE Insulated 0.6/1kV

Contact Now

Three Cores 450V / 750V Fire Resistant Wire , Flame Resistant Cable PE Insulation

Contact Now

Low Voltage Fire Resistant Cable Single Core Pvc Sheath Xlpe Insulation

Contact Now

FRC Fire Safe Cable , Fire Rated Electrical Cable XLPE Insulated CU Conductor

Contact Now

CU / MICA / XLPE / PVC Fire Resistant Cable 0.6/1kV 4x240mm2 For Electricity Power

Contact Now

Halogen Free Fire Retardant Low Smoke Cable , Fire Resistant Wire LSZH

Contact Now

0.6/1kV Fire Resistant Cable Size 1.5sqmm ~ 800sqmm Four Core IEC 60331

Contact Now

4 Cores FRC Fire Rated Armoured Cable LSZH Sheathed 0.6/1kV Copper Conductor

Contact Now

600/1000V Fire Resistant Cable XLPE Insulation Flame Retardant Sheath

Contact Now

Sheathed Fire Rated Power Cable 0.6 / 1kV Mica Tape 600/1000V Indoor Outdoor

Contact Now

PRODUCTS DETAILS

Products

XLPE Insulated Cable

PVC Insulated Cable

Mineral Insulated Cable

Armoured Electrical Cable

Multicore Control Cable

Single Core Wire

Shielded Instrument Cable

Low Smoke Zero Halogen Cable

Fire Resistant Cable

Flame Retardant Cable

Rubber Flexible Cable

Aerial Bundled Cable

Bare Conductor

Flexible Electrical Cable

Solar PV Cable

Prefabricated Branch Cable

High Temperature Cable

Copper Clad Aluminum Wire

Flexible Welding Cable

Welding Torch Cable

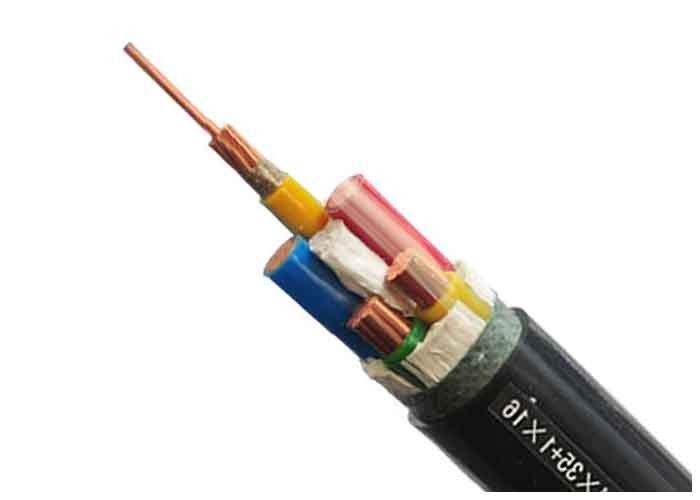

4x35mm2 XLPE Insulated Power Cable Mica Tape XLPE Fire Proof Cable
