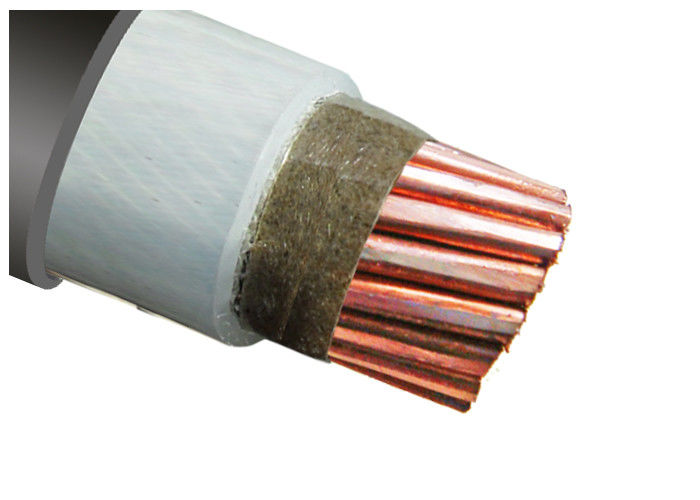

IEC Standard LV MV FRC Fire Retardant Cable XLPE Insulation LSZH Sheathed

FRC Fire Resistant XLPE insulation LSOH sheath Power cable

CodeDesignation

YJ:XLPEinsulation Y: LSOH sheath

Applications

Forlaying indoors and outdoors.Able to bear certain traction during installation, but not extemal mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

lnternational: IEC60502. IEC60228, (lEC60332-3forFRcableonly) China: GB/T12706,(GB/T18380-3 for FR cable only)

Other standards such as BS, DIN and lCEAupon request

Technical data

Rated voltage: 0.6/ 1㎸

Maximum Conductor Temperature: under normal (90°C), emergency(130°C) or short circuit no more than 5 s(250°C) conditions Min.Ambient Temp.-15°C,lnstallationTemp.0°C
