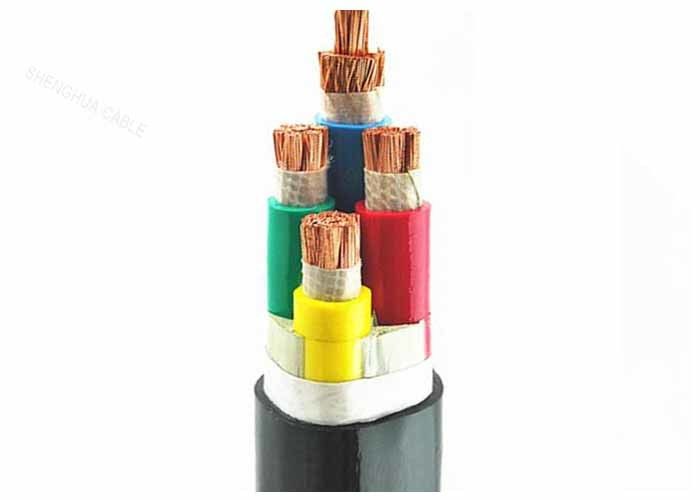

0.6/1kV Flexible FRC Cable CU/XLPE/PVC Fire Orange Color Resistant Cable Price
Applications
PVC Insulated Cable is used as power distribution and transmission line at rated voltage 0.6/1KV.
Used outside as energy utility and lighting cables, in cable ducts, under ground, under normal and salty water if specially made.
Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request
Installation
1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installantion, the cable should with stand voltage test for 15min. 3.5kv D.C.
Technical parameter:
| Cross section of conductor |
Thickness of insulation |
Thickness of Sheath |
Approx.cable diameter |
Max.resistance of conductor at 20 ℃ |
Test Voltage(AC) |
| mm2 |
mm |
mm |
mm |
ohm/km |
KV/5min |
| 4x2.5 |
0.8 |
1.8 |
12.7 |
7.41 |
3.5 |
| 4x4 |
1.0 |
1.8 |
14.9 |
4.61 |
3.5 |
| 4x6 |
1.0 |
1.8 |
16.1 |
3.08 |
3.5 |
| 4x10 |
1.0 |
1.8 |
19.2 |
1.83 |
3.5 |
| 4x16 |
1.0 |
1.8 |
21.7 |
1.15 |
3.5 |
| 4x25 |
1.2 |
1.8 |
25.9 |
0.73 |
3.5 |
| 4x35 |
1.1 |
1.8 |
28.7 |
0.524 |
3.5 |
| 4x50 |
1.4 |
1.9 |
30.4 |
0.387 |
3.5 |
| 4x70 |
1.6 |
2.1 |
33.9 |
0.268 |
3.5 |
| 4x95 |
1.6 |
2.2 |
39.7 |
0.193 |
3.5 |
| 4x120 |
1.8 |
2.4 |
44.2 |
0.153 |
3.5 |
| 4x150 |
2.0 |
2.0 |
48.7 |
0.124 |
3.5 |
| 4x185 |
2.2 |
2.7 |
53.5 |
0.0991 |
3.5 |
| 4x240 |
2.4 |
2.9 |
55.4 |
0.0754 |
3.5 |
| 4x300 |
2.6 |
3.0 |
61.0 |
0.060 |
3.5 |
| 4x400 |
2.6 |
3.2 |
70.0 |
0.0470 |
3.5
|
Technical data:
Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
Temperature range in motion -5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2
