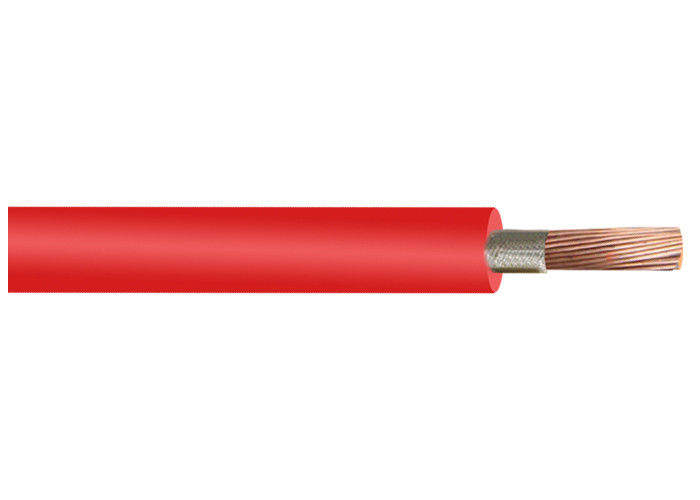

Mica Tape Screened Fire Resistant Cable LSZH PO Insulated 4mm 6mm 10mm

Mica Tape Screened Heat Resistant Flexible Cable LSZH PO Insulated 4mm 6mm 10mm

Applications
Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

Operating characteristics

1, Long-term allowable operating temperature of cable conductor ≤70°C

2, Highest working temperature of cable in case of short circuit (the longest lasting time is not over 5s):≤300mm2 cable conductor ≤160°C, ≥300 mm2 cable conductor≤ 140°C.

3, The laying temperature should over 0℃,Permissible bending radius of cable:for single core unarmored cable, should be no less than 20 times of it’s outer diameter ; for multi-core unarmored cable, should be no less than 15 times of it’s outer diameter

4, With flame-retardant property,ZA,ZB,ZC,ZD are 4 types

5, The product is applicable for AC 50 Hz transmission and distribution lines with rated voltage of 0.6/1KV

Conductor : Class 1,2,5 Flexible Copper Conductor

Screen:        Mica tape

Insulation:    PVC or LSZH PO

Sheath: PVC: (Optional)

Rated Voltage : 450/750V

Standards
International: IEC 60227,IEC60331
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request

Technical Data

Rated voltage: 300/500 V
Max. Conductor Temp. in normal use: 90℃
Min. Bending Radius: 6 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
