IEC Standard LV MV FRC Fire Retardant Cable XLPE Insulation LSZH Sheathed

MOQ: 500m
Price: 0.5-50 USD
Standard Packaging: Wooden Iron Drum
Delivery Period: 15 working days
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 5000 KM per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
CE/KEMA/IEC
Conductor:
Copper
Insulation:
XLPE
Wrapping Tape:
LSOH BendingTape
Sheath:
LSOH
Rated Voltage:
LV And MV
Cores No.:
1-5 Cores
Highlight:

fire resistant wire

,

fire proof electrical cable

Product Description

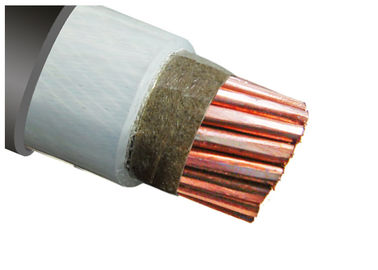

FRC Fire Resistant XLPE insulation LSOH sheath Power cable



Construction

1 Conductor: Compactstranded copperconductor, Cl.2 as perlEC60228

(11 MicaTape

③lnsulation:XLPE(cross-linkedpolyethylene)ratedat90°C

(1111 Filler

(5: Wrapping Tape: LSOH BendingTape

⑥Sheath:LSOH,blackorothercolors,asperlEC60332,60502-1









CodeDesignation

YJ:XLPEinsulation Y: LSOH sheath







Applications

Forlaying indoors and outdoors.Able to bear certain traction during installation, but not extemal mechanical forces. Laying single core cable in magnetic ducts is not allowed.







Standards

lnternational: IEC60502. IEC60228, (lEC60332-3forFRcableonly) China: GB/T12706,(GB/T18380-3 for FR cable only)

Other standards such as BS, DIN and lCEAupon request







Technical data

Rated voltage: 0.6/ 1㎸

Maximum Conductor Temperature: under normal (90°C), emergency(130°C) or short circuit no more than 5 s(250°C) conditions Min.Ambient Temp.-15°C,lnstallationTemp.0°C

IEC Standard LV MV FRC Fire Retardant Cable XLPE Insulation LSZH Sheathed 0IEC Standard LV MV FRC Fire Retardant Cable XLPE Insulation LSZH Sheathed 1
