| MOQ: | 500m |
| Price: | USD 0.86 To 9.99 /m |
| Standard Packaging: | wooden drum,drum size:1.8x1.8x1.4m,for 20 ft container can load 4 packages. |
| Delivery Period: | 10-15 days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 100KM/Days |

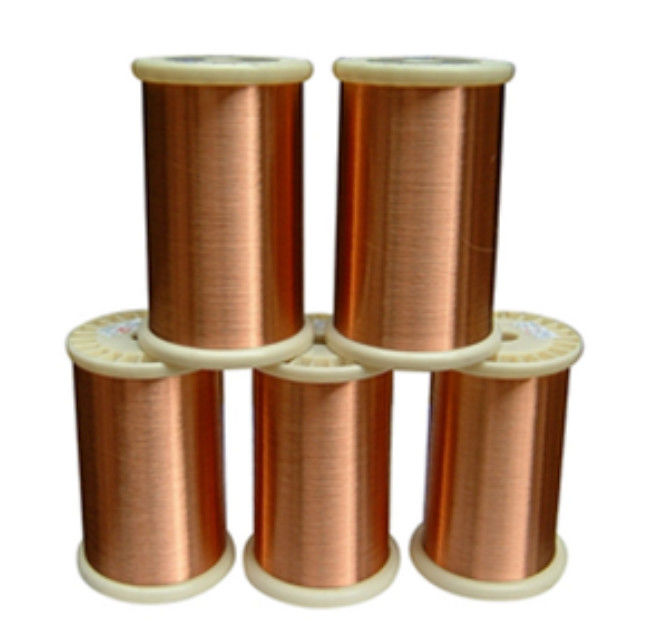

0.6/1KV 3.6/6KV Copper Clad Aluminum Wire XLPE Or PVC Insulation
Copper Clad Aluminum Wire Feature
1. Wide Usage
2. Easy to Welding
3. Excellent Performance
Voltage level
0.6/1KV3.6/6KV8.7/10KV,8.7/15KV12/20KV
18/20KV21/35KV26/35KV
Product Description
Copper clad aluminum wire and covered with welding manufacturing technology, high-quality copper cladding concentrically on the outer surface of the aluminum rod or steel wire core wire, and the formation of a strong metallurgical bond between the atoms between the copper layer and the core, so that two different metal materials combined into an integral whole, can make as drawing and annealing process as a single metal wire drawing process of copper and aluminum with adjustable proportion to the copper layer volume ratio remained relatively constant constant.
Type and Data
0.6/1KV Single Core
| Nominal section of conductor | Nominal insulation thicknes (mm) | Thickness of sheath (mm) |
Cable diameter (mm) |
Reference Weight (kg/km) |
20℃ Max DC resistance of conductor(Ω/KM) |
| 1x2.5 | 0.8 | 1.8 | 7.5 | 63 | 10.8 |
| 1x4 | 1.0 | 1.8 | 8.5 | 80 | 6.92 |
| 1x6 | 1.0 | 1.8 | 9.0 | 94 | 4.35 |
| 1x10 | 1.0 | 1.8 | 10.0 | 126 | 2.70 |
| 1x16 | 1.0 | 1.8 | 11.5 | 161 | 1.74 |
| 1x25 | 1.2 | 1.8 | 13.5 | 225 | 1.10 |
| 1x35 | 1.2 | 1.8 | 14.0 | 277 | 0.765 |
| 1x50 | 1.4 | 1.8 | 16.0 | 355 | 0.539 |
| 1x70 | 1.4 | 1.8 | 17.5 | 460 | 0.386 |
| 1x95 | 1.6 | 1.8 | 20.0 | 603 | 0.284 |
| 1x120 | 1.6 | 1.8 | 21.5 | 722 | 0.220 |
| 1x150 | 1.8 | 1.8 | 24.0 | 871 | 0.173 |
| 1x185 | 2.0 | 1.8 | 26.0 | 1065 | 0.141 |
| 1x240 | 2.2 | 2.0 | 30.0 | 1364 | 0.102 |
| 1x300 | 2.4 | 2.2 | 32.0 | 1687 | 0.0843 |
|
|
