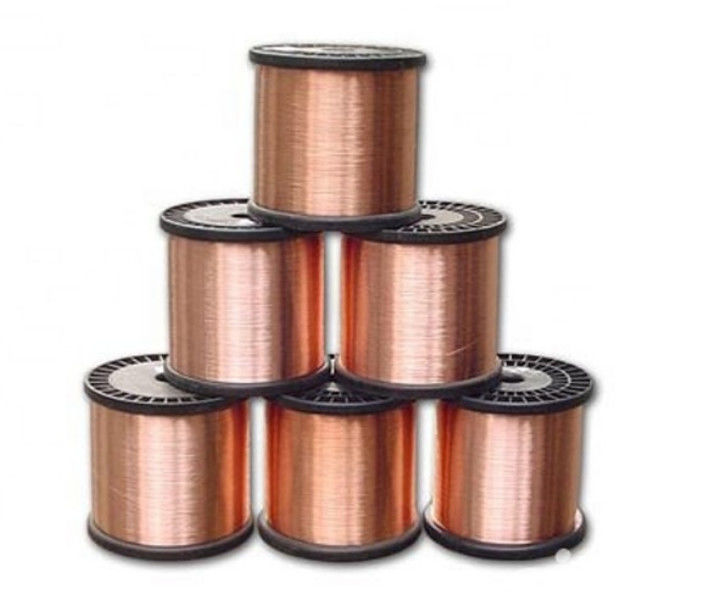

7.5MM 8.5MM CCA Copper Clad Aluminum Wire Round Winding Wire

7.5MM 8.5MM CCA Copper Clad Aluminum Wire Round Winding Wire

  • High Light

    8.5MM CCA Copper Clad Aluminum Wire

    ,

    7.5MM CCA Copper Clad Aluminum Wire

    ,

    7.5MM Round Winding Wire

  • Name
    Round Winding Wire
  • Application
    Laying Indoor, Used For Electric Transmission And Distribution System
  • Test Voltage
    3.5KV/5min
  • Conductor Type
    Conductor Type:
  • Standard
    EC 60502-1,UL1581
  • Main Market
    Asia,Midldle-East,African,
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/KEMA/CCC/TUV
  • Minimum Order Quantity
    500m
  • Price
    USD 0.86 To 9.99 /m
  • Packaging Details
    wooden drum,drum size:1.8x1.8x1.4m,for 20 ft container can load 4 packages.
  • Delivery Time
    10-15 days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    100KM/Days

7.5MM 8.5MM CCA Copper Clad Aluminum Wire Round Winding Wire

7.5MM 8.5MM CCA Copper Clad Aluminum Wire Round Winding Wire


CCAM wire used the most advanced welding and copper plating process to produce , copper layer used 99.9% purity copper with high density and better conductivity , and ours metallurgical bonding technique assures that the copper cladding is evenly distributed around the Aluminum magnesium coil along the wire for excellent concentricity , Mechanical properties accord with US ASTM B 56693 Standard .



Product Features Analysis:



1, DC resistivity: copper clad aluminum wire copper line resistivity large than about 1.5 times the copper wire, the female values are the same, copper clad aluminum wire copper wire weighs about 1/2.

2, The use of copper clad aluminum conductor can be continued for many years to meet the current in the wire and cable product selection, design, installation and other habits, also pressed the cable terminals, enabling soldering.

3, Lower AC resistance:

4, Light weight and low cost: Compared with the same technical specifications of copper cable, copper clad aluminum conductor cable cost savings of more than 40%, copper clad aluminum / copper composite conductor cable cost savings of more than 20%.

5, Good weldability: copper clad aluminum wire because of its surface coated with a layer of concentric copper, with copper wire so it has the same weldability, to facilitate the production



Classification



One is the signal or communication purposes copper clad aluminum cable, and the other is for power supply



Voltage level



0.6/1KV3.6/6KV8.7/10KV,8.7/15KV12/20KV
18/20KV21/35KV26/35KV

Type and Data

0.6/1KV Single Core

Nominal section of conductor Nominal insulation thicknes (mm) Thickness of sheath (mm)

Cable diameter

(mm)

Reference Weight

(kg/km)

20℃ Max DC resistance of conductor(Ω/KM)
1x2.5 0.8 1.8 7.5 63 10.8
1x4 1.0 1.8 8.5 80 6.92
1x6 1.0 1.8 9.0 94 4.35
1x10 1.0 1.8 10.0 126 2.70
1x16 1.0 1.8 11.5 161 1.74
1x25 1.2 1.8 13.5 225 1.10
1x35 1.2 1.8 14.0 277 0.765
1x50 1.4 1.8 16.0 355 0.539
1x70 1.4 1.8 17.5 460 0.386
1x95 1.6 1.8 20.0 603 0.284
1x120 1.6 1.8 21.5 722 0.220
1x150 1.8 1.8 24.0 871 0.173
1x185 2.0 1.8 26.0 1065 0.141
1x240 2.2 2.0 30.0 1364 0.102
1x300 2.4 2.2 32.0 1687 0.0843
