| MOQ: | 100m |
| Standard Packaging: | Wooden drum |
| Delivery Period: | 7 Days after received deposit |
| Payment Method: | L/C, T/T |

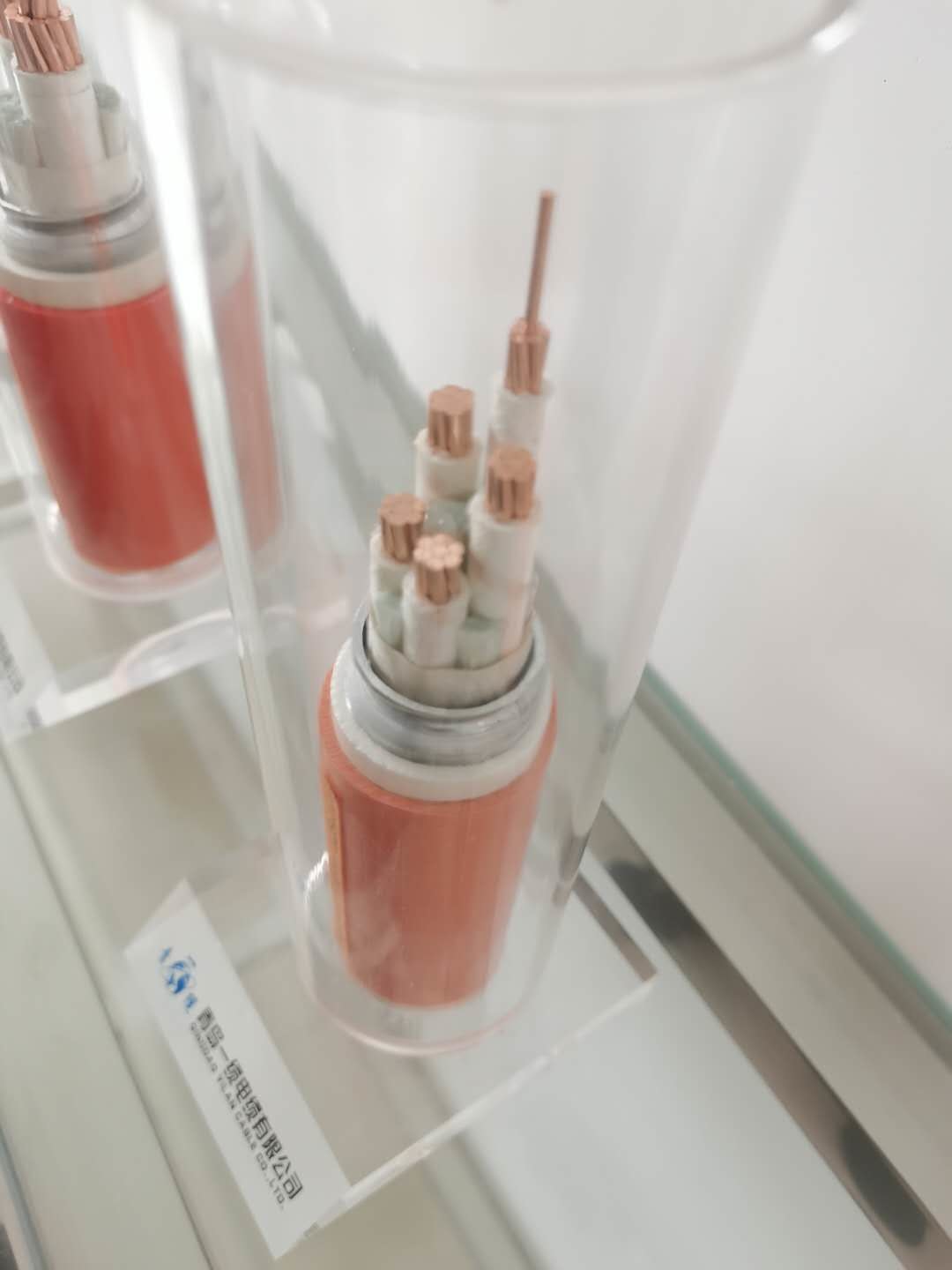

3 X 1.5 Mm2 3 X 150 Mm2 Mineral Insulated Power Cable Micc Cable
Mineral Insulated Power Cable is used in distribution circuits in large buildings, rail transit, hospitals, shopping malls, entertainment venues, data centers and other important places

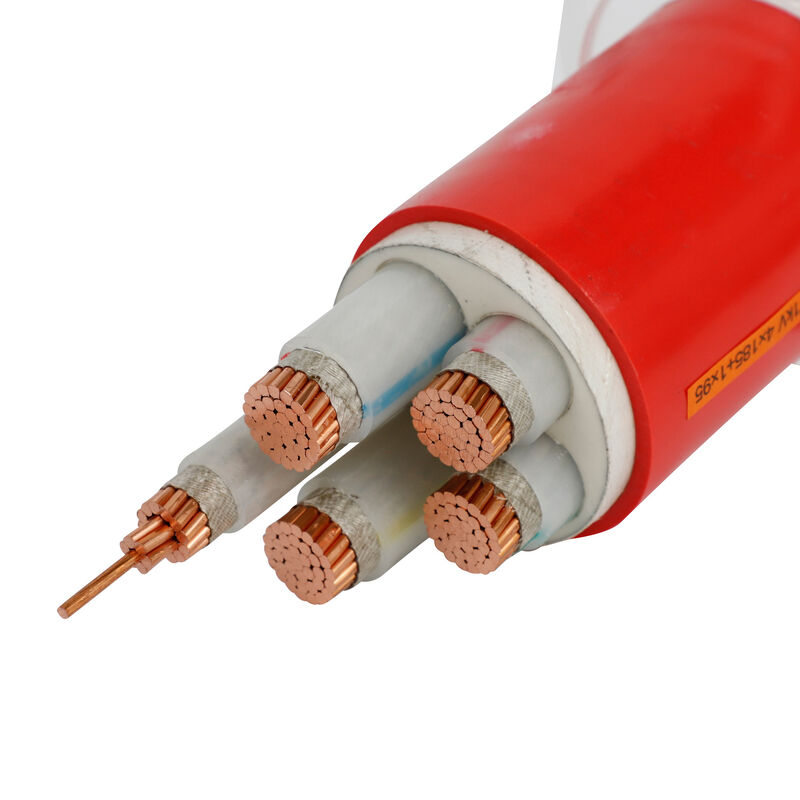

Structure of Mineral Insulated Power Cable
1. Cable conductor: it is made up of stranded copper wires, with favorable flexural property
2. Insulation layer : it adopts high-temperature resistant inorganic insulating materials
3. Copper sheath: copper materials, through special machining, with favorable flexural property. used as PE wire.
4. Outer sheath: it is made of plastic materials of low-smoke non-toxicity, with favorable corrosion protection.
| Nominal Cross section |
Outer Diameter approx. |
Weight of cable approx. | Voltage drop | Mini bending radius |
|
| Single phase | Three phase | ||||
| mm2 | mm | kg/km | V/A.km | V/A.km | mm |
| 3 x 1.5 | 10.7 | 273.3 | 30.8 | 26.7 | 160.5 |
| 3 x 2.5 | 11.6 | 319.4 | 18.9 | 16.4 | 174.0 |
| 3 x 4 | 12.5 | 398.3 | 11.8 | 10.2 | 187.5 |
| 3 x 6 | 13.7 | 479.9 | 7.9 | 6.81 | 205.5 |
| 3 x 10 | 17.3 | 636.1 | 4.7 | 4.05 | 259.5 |
| 3 x 16 | 19.5 | 846.8 | 2.94 | 2.55 | 292.5 |
| 3 x 25 | 22.3 | 1,192.9 | 1.87 | 1.62 | 334.5 |
| 3 x 35 | 25.2 | 1,518.8 | 1.35 | 1.17 | 378.0 |
| 3 x 50 | 28.6 | 1,950.5 | 1.01 | 0.87 | 429.0 |
| 3 x 70 | 32.7 | 2,629.9 | 0.71 | 0.61 | 490.5 |
| 3 x 95 | 37.1 | 3,588.8 | 0.52 | 0.454 | 556.5 |
| 3 x 120 | 40.9 | 4,379.3 | 0.43 | 0.371 | 613.5 |
| 3 x 150 | 45.5 | 5,284.9 | 0.36 | 0.313 | 682.5 |
According to national standards, fire-resistant wire and cable: fire test method characteristic test, According to GB12666. 6 Class A, burn in fire with flame temperature 950℃ apply voltage of 750V between phase and phase and between phase and outer sheath it should be able to withstand for 90min without breakdown.
Class B, bun in fire with flame temperature 750-800 ° C, apply voltage of 750V between phase and phase and between phase and sheath it should be able to withstand for 90 min without breakdown.
According to the BS6378, flexible fireproof cable satisfies the following requirements:
Class A 650 ℃ 3h
Class B 750 ℃ 3h
Class C 950 ℃ 3h
Class S 950 ℃ 20min
Rated Voltage: 0.6/1kV
Rated working voltage: light load 500V, heavy load 750V;
Rated current: single core 25-1800 A; multi-core 16-500A
Insulation resistance: insulation resistance≥ 1000MΩ per km. cable length less than 100m, then the insulation resistance ≥ 10000 MΩ
|
|
