BBTRZ MICC Mineral Insulated Copper Sheathed Cable High Temperature Resistant

BBTRZ MICC Mineral Insulated Copper Sheathed Cable High Temperature Resistant

  • High Light

    MICC Mineral Insulated Copper Sheathed Cable

    ,

    BBTRZ Mineral Insulated Copper Sheathed Cable

    ,

    BBTRZ MICC cable

  • Product Name
    Mineral Insulated Copper Sheathed Cable
  • Insulation Material
    PVC
  • Conductor Material
    Copper
  • Outer Jacket
    Clean & Smooth PVC
  • Type
    Insulated
  • Number Of Conductors
    Multi Core
  • Brand Name
    HOLD-ONE
  • Model Number
    Mineral Insulated Copper Sheathed Cable
  • Minimum Order Quantity
    100m
  • Packaging Details
    Wooden drum
  • Delivery Time
    7 Days after received deposit
  • Payment Terms
    L/C, T/T

BBTRZ MICC Mineral Insulated Copper Sheathed Cable High Temperature Resistant

BBTRZ MICC Mineral Insulated Copper Sheathed Cable High Temperature Resistant



Mineral Insulated Copper Sheathed Cable Quick Details



Using 99.9% high-purity copper core, the electrical conductivity is stable and the current load capacity is strong.
The material is polyvinyl chloride as the isolation layer, and the cable has low eccentricity to prevent breakdown and avoid fire. At the same time, the material is strictly controlled and the quality is excellent.



Mineral Insulated Copper Sheathed Cable Paraameters



Nominal
Cross
section
Outer
Diameter
approx.
Weight of cable approx. Voltage drop Mini
bending
radius
Single phase Three phase
mm2 mm kg/km V/A.km V/A.km mm
3 x 1.5 10.7 273.3 30.8 26.7 160.5
3 x 2.5 11.6 319.4 18.9 16.4 174.0
3 x 4 12.5 398.3 11.8 10.2 187.5
3 x 6 13.7 479.9 7.9 6.81 205.5
3 x 10 17.3 636.1 4.7 4.05 259.5
3 x 16 19.5 846.8 2.94 2.55 292.5
3 x 25 22.3 1,192.9 1.87 1.62 334.5
3 x 35 25.2 1,518.8 1.35 1.17 378.0
3 x 50 28.6 1,950.5 1.01 0.87 429.0
3 x 70 32.7 2,629.9 0.71 0.61 490.5
3 x 95 37.1 3,588.8 0.52 0.454 556.5
3 x 120 40.9 4,379.3 0.43 0.371 613.5





MICC Mineral Insulated Cable – Material Construction



• An outer sheath consisting of a continuous seamless copper tube with a melting point of 1083 deg C

• A magnesium oxide insulant with a melting point of 2800 deg C

• 99.9% electrolytic copper conductors with a melting point of 1083 deg C

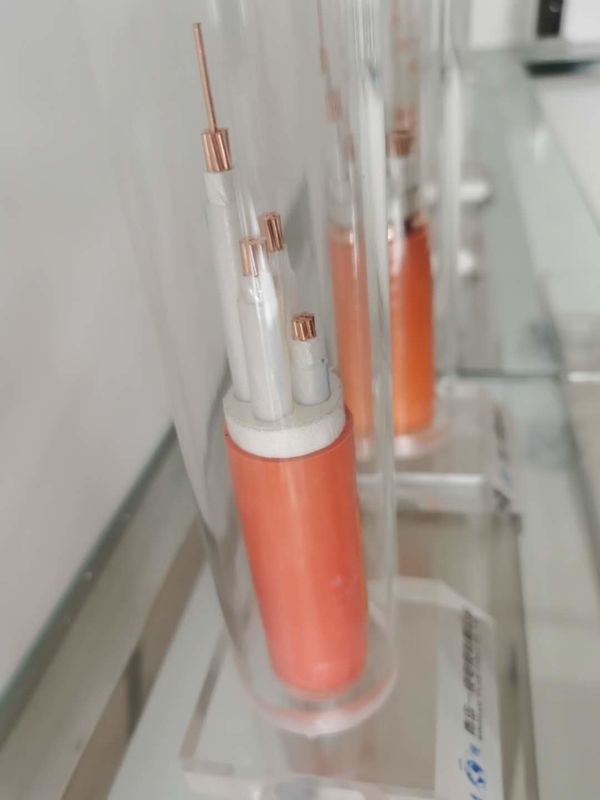

BBTRZ MICC Mineral Insulated Copper Sheathed Cable High Temperature Resistant 0



ADVANTAGE



• Pliable

• Mechanically superior

• Fireproof

• Waterproof

• Explosion Proof

• Radiation Resistant

• Lighter in weight

• Can operate in low temperatures



Advantages of mining cable



1. Property of corrosion proof, organic insulated fireproof requires plastic tube or tube or iron tube sometimes, the plastic tube is liable to deteriorate and iron tube is apt to rust or erode, but the fireproof cable has copper sheath and the tube is need-less, besides, copper sheath has favorable corrosion resistance.



2. Free of electromagnetic interference when wiring in the same vertical shaft with information wire and control wire because of shielding of copper sheath the fireproof cable would not interfere the single and control wires or cables ;



3. Tinguishing apparatus normally in flame, it reduces fire damage, extinguishing apparatus normally in flame, it reduces fire damage. Besides, it is reliable for personnel safety, as its copper sheath is a kind of good conductor, is the best earthed PE wire and covers the whole cable, the life of up to 100 years ;

4. Long service life, high-temperature resistance and degradation resistance of inorganic insulated material its service life is many times of that of organic insulated cables, under normal working conditions, its service Life can be as long as that of buildings;



We supply the full range of LSF (Low Smoke & Fume) outer coverings.

Used for identification purposes where cables are run on the surface of walls or cable trayplates. They are usually Red in colour for fire protection, or the standard Orange. We can also supply a range of other colours on request.
