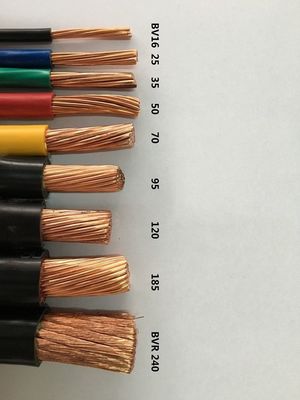

HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring
HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring
HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring

HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring

Product Details:
Place of Origin: China
Brand Name: HOLDONE
Certification: CCC FCC CE
Model Number: BV BVR
Payment & Shipping Terms:
Minimum Order Quantity: 1000 m
Price: USD1-USD3
Packaging Details: carton/ wood or metal drum
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 10km/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Structure: Solid Or Stranded Jacket: PVC
Voltage: 350-600 V
High Light:

PVC Copper Single Core Wire

,

HPLE Copper Single Core Wire

,

6mm 10mm House Wiring

Product Description

HPLE PVCcopper wire bv/bvr 1.5 mm 2.5mm 4mm 6mm 10mm house wiring electrical cable single core wire black white red

  • Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
  • Main of cables features
1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
  • Application:
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, householdelectrical applance,insurment and telecommunication equipment.copper cable electric cable wire
Voltage Level
(V)		 Nominal section
(mm²)		 Toplimit of overall diameter
(mm)		 Maximum DC resistance
(20℃)		 Minimum insulation resistance
(70℃)		 Recommended value of carrying capacity
(A)		 Reference weight
(KG,KM)
300/300 2x0.5 5.9 3.9 0.012 10 37
2x0.75 6.3 26.0 0.01 13 47
3x0.5 6.3 39.0 0.012 8 44
3x0.75 6.7 26.0 0.01 10 58
2x0.75 7.2 26.0 0.011 13 58
300/500 2x1.0 7.5 19.5 0.01 16 66
2x1.5 8.6 13.30 0.01 20 89
2x2.5 10.6 7.98 0.009 27 137
2x4 12.4 4.95 0.007 38 205
2x6 14.5 3.30 0.006 50 280
3x0.75 7.6 26.00 0.011 9 70
3x1.0 8.0 19.50 0.01 11 80
3x1.5 9.4 13.300 0.01 12 112
3x2.5 11.4 7.980 0.009 21 172
3x4 13.5 4.950 0.007 27 255
3x6 14.0 3.30 0.006 34 340
4x0.75 8.3 26.0 0.011 10 84
4x1.0 9.0 19.50 0.01 12 101
4x1.5 10.5 13.30 0.01 13 141
4x2.5 12.5 7.98 0.009 21 210
4x4 14.6 4.95 0.007 27 310
4x6 16.0 3.30 0.006 35 425
5x0.75 9.3 26.00 0.011 10 103
5x1.0 9.8 19.50 0.01 12 119
5x1.5 11.6 13.30 0.01 13 172
5x2.5 13.9 7.98 0.009 22 257
5x4 16.5 4.95 0.007 27 386
5x6 17.3 3.30 0.006 35 518








HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring 0HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring 1HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring 2HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring 3HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring 4HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring 5HPLE PVC Copper Single Core Wire Bv/Bvr 1.5Mm 2.5mm 4mm 6mm 10mm House Wiring 6
