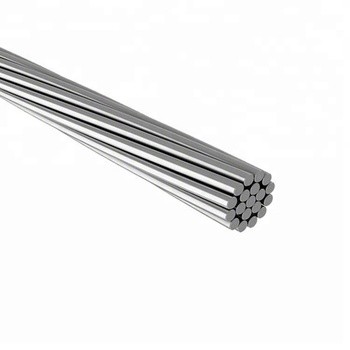

10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm

10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm

Products - Bare Conductor
  • High Light

    33kv ABC Aerial Bundle Cable

    ,

    10kv ABC Aerial Bundle Cable

    ,

    11kv 3x95mm ABC Cable

  • Application
    Overhead
  • Conductor Material
    Aluminum
  • Type
    Low Voltage,High Voltage,Medium Voltage,AAC AAAC ACSR ACAR
  • Insulation Material
    Bare,No
  • Jacket
    No
  • Place of Origin
    China
  • Brand Name
    HOLDONE
  • Certification
    CCC FCC CE
  • Model Number
    YLV
  • Minimum Order Quantity
    1000 m
  • Price
    USD1-USD10
  • Packaging Details
    carton/ wood or metal drum
  • Delivery Time
    10 working days
  • Payment Terms
    T/T
  • Supply Ability
    10km/month

10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm

  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
  • 10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv 3x95mm
Get Price Contact Now

10kv 33kv Aluminum Conductor ABC Aerial Bundle Cable XLPE Insulated 11kv Overhead Power Aluminum Cable 3x95mm

Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Holdone
Model Number:
aerial bundled conductor cable
Insulation Material:
XLPE PVC PE
Type:
Medium Voltage
Application:
Self Support Aerial Cable
Conductor Material:
Aluminum/Copper
Jacket:
PE/XLPE/PVC
Conductor:
ACSR/AAC/AAAC
Hot-Sale Size:
70mm 90mm 185mm 150mm
Cores:
1(single core)/3(triplex)
Code Name:
According to the srandard
Standard:
IEC/SIP/NFC33209 and so on
Packing:
Wooden Drum Iron Drum As your request
Certificate:
ISO9001/CCC
MOQ:
1000m as usuall
OEM:
Yes
Product name:
XLPE Insulated 11kv Overhead Power Aluminum Cable

Specification and Parameter of MV ABC Cable



6.35/11kV & 12.7/22kV ABC Cable-AS/NZS 3599.1 Standard
number of cores x nominal cross section Nominal conductor diameter Nominal insulation thickness Nominal insulation screen thickness Nominal sheath thickness AAAC/1120 support conductor size Nominal overall diameter Weight Continuous current rating, A
Still air 1m/s wind 2m/s wind
mm^2 mm mm mm mm No/mm mm kg/km A A A
6.35/11kV
3x35 6.9 3.4 0.8 1.2 7/4.75 52.4 1370 110 155 185
3x50 8.1 3.4 0.8 1.2 7/4.75 54.6 1530 130 185 225
3x70 9.7 3.4 0.8 1.2 7/4.75 57.8 1790 160 235 280
3x95 11.4 3.4 0.8 1.2 7/4.75 61.3 2100 195 285 345
3x120 12.8 3.4 0.8 1.2 19/3.50 67.3 2540 230 335 405
3x150 14.2 3.4 0.8 1.2 19/3.50 70.1 2840 255 380 460
3x185 15.7 3.4 0.8 1.2 19/3.50 73.1 3190 295 440 530
12.7/22kV
3x35 6.9 5.5 0.8 1.2 7/4.75 61 1780 110 155 180
3x50 8.1 5.5 0.8 1.2 7/4.75 63.3 1970 130 185 220
3x70 9.7 5.5 0.8 1.2 7/4.75 66.5 2260 160 230 275
3x95 11.4 5.5 0.8 1.2 7/4.75 69.9 2600 195 285 335
3x120 12.8 5.5 0.8 1.2 19/3.50 75.9 3070 225 330 395
3x150 14.2 5.5 0.8 1.2 19/3.50 78.7 3390 255 375 450
3x185 15.7 5.5 0.8 1.2 19/3.50 81.7 3760 290 435 520
