XLPE Polyolefin Sheath Armoured Electrical LSZH Power Cable Insulated

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: PCCC/ISOCE/KEMA
Payment & Shipping Terms:
Minimum Order Quantity: 200m
Price: USD 0.5-50/meter
Packaging Details: Fumigation Wooden Drum
Delivery Time: As per schedule
Supply Ability: 500km per month
  • Detail Information
  • Product Description

Detail Information

Rated Voltage: 0.6/1kV Cores: 1,2,3,4,5
Standard: IEC60502-1,IEC61034,IEC60754 Function: Environmental Protection
Size: 1.5-600mm2 Color: Customized
Package: Free
High Light:

Armoured Electrical LSZH Power Cable

,

Polyolefin Sheath LSZH Power Cable

,

XLPE Lszh Cable

Product Description

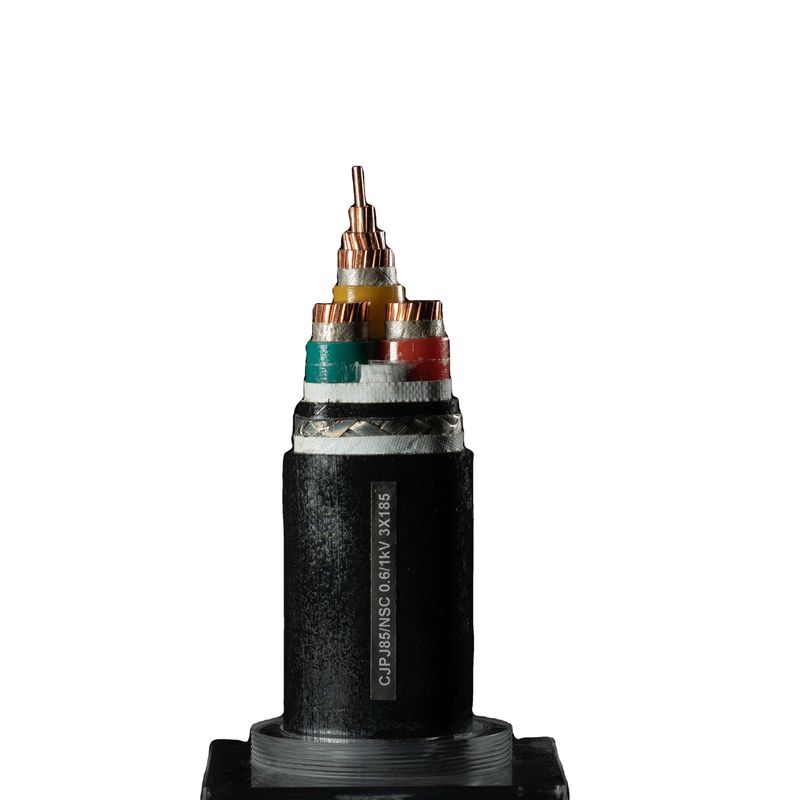

LSZH Fire Resistant XLPE Insulated Polyolefinsheath Armoured Electrical Power Cable



Property for use



Fire resistant or fire rated cables are designed to maintain circuit integrity and continue to work for a specified period of time under defined flame temperature conditions.



LSZH FR cable is an important cable to be used when you require critical electrical installations to perform during a fire evacuation: fire alarm systems, voice alarm systems, and emergency lighting systems.



They are therefore often specified indoors, especially in public areas, and in other hazardous environments and poorly ventilated areas. This includes cars, aircraft, railway carriages and ships. LSZH sheathed cables are commonly used across tunnels and underground rail networks.



Table 1
Type Name
NH-VV fire resistant PVC insulated,PVC sheath,copper power cable
NH-VV22 fire resistant PVC insulated,PVC sheath,steel belt armoured copper power cable
NH-YJV fire resistant XLPE insulated,PVC sheath,copper power cable
NH-YJV22 fire resistant XLPE insulated,PVC sheath,steel belt armoured copper power cable
NH-FF fluoroplastic isulated,fluoroplastic sheath copper power cable
WDZN-YY LSZH polyolefin insulated, polyolefin sheath copper power cable
WDZN-YY23 LSZH polyolefin insulated, polyolefin sheath steel belt armoured copper power cable
NH-YGG silicone rubber insulated, silicone rubber sheath copper power cable



Type Cores Rated voltage 0.6/1kv
Section(mm2)
NH-VV;NH-VV22;NH-FF;NH-YGG;NH-YJV;NH-YJV22;NH-WDZN-YY23 1~5 1.5~300;4~300
Table 3
Cable core diameterΦ Fluoroplastic sheath thickness
3-5 0.55
5.01-10 0.7
10.01-15 0.8
15.01-20 0.85
20.01-25 0.95
25.01-30 1.05
Property:
1,The ambient temperature for cable laying: above 0°C
2,Long-term maximum working temperature of PVC insulated conductor is not more than 70°C; NH-YJV conductor is not more than90°C;WDZN-YY conductor is not more than 90°C;NH-YGG conductor is not more than180°C;NH-FF conductor is not more than200°C.
