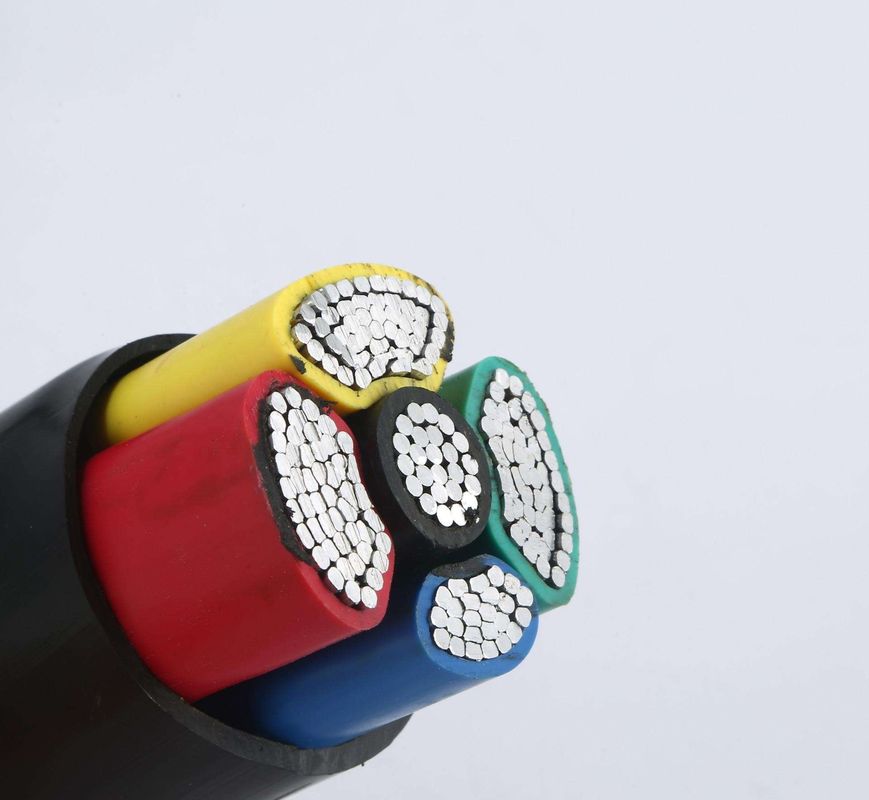

5 Core Pe Xlpe Insulated Electrical Power Cable 25 Mm2

5 Core Pe Xlpe Insulated Electrical Power Cable 25 Mm2

  • High Light

    Xlpe Insulated Electrical Power Cable

    ,

    25 Mm2 Electrical Power Cable

    ,

    5 Core Xlpe Power Cable

  • Name
    Copper Conductor Cable
  • Conductor Material
    Copper
  • Standard
    IEC 60502-1
  • Outer Sheath
    XLPE
  • Color
    Customized
  • Type
    XLPE Underground Cable
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/IEC/KEMA/VDE
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Iron-wooden Drum or Whole Wooden Drum
  • Delivery Time
    8-15 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100km per Month

5 Core Pe Xlpe Insulated Electrical Power Cable 25 Mm2

5 Core 25 Mm2 Pe Xlpe Insulated Electrical Power Cable



Article number: YJLV

Rated voltage :0.6/1 KV

Standard: GB/T 12706.1-2008, IEC 60502-2004



This product is suitable for power transmission and distribution under AC rated voltage 0.6/1kv and 50Hz operating frequency lines.



Voltage rating for XLPE Power Cable No. x Nominal Cross Section of Conductor No. x mm2
1 core 2 core 3 core 3+1 core 4core 3+2 core 4+1 core 5 core
0.6/1 kV 1x4 mm2 2x4 mm2 3x4 mm2 3x4 mm2 + 1x2.5mm2 4x4 mm2 3x4 mm2 + 2x2.5mm2 4x4 mm2 + 1x2.5mm2 5x2.5 mm2
1x6 mm2 2x6 mm2 3x6 mm2 3x6 mm2 + 1x4 mm2 4x6 mm2 3x6 mm2 + 2x4 mm2 4x6 mm2 + 1x4 mm2 5x4 mm2
1x10 mm2 2x10 mm2 3x10 mm2 3x10 mm2 + 1x6 mm2 4x10 mm2 3x10 mm2 + 2x6 mm2 4x10 mm2 + 1x6 mm2 5x6 mm2
1x16 mm2 2x16 mm2 3x16mm2 3x16 mm2 + 1x10 mm2 4x16 mm2 3x16 mm2 + 2x10 mm2 4x16 mm2 + 1x10 mm2 5x10 mm2
1x 25 mm2 2x 25 mm2 3x 25 mm2 3x25 mm2 + 1x16mm2 4x25 mm2 3x25 mm2 + 2x16mm2 4x25 mm2 + 1x16mm2 5x16 mm2
1x35 mm2 2x35 mm2 3x 35 mm2 3x35 mm2 + 1x16mm2 4x35 mm2 3x35 mm2 + 2x16mm2 4x35 mm2 + 1x16mm2 5x25 mm2
1x50 mm2 2x50 mm2 3x 50 mm2 3x50 mm2 + 1x25mm2 4x50 mm2 3x50 mm2 + 2x25mm2 4x50 mm2 + 1x25mm2 5x35 mm2
1x70 mm2 2x70 mm2 3x 70 mm2 3x70 mm2 + 1x35mm2 4x70 mm2 3x70 mm2 + 2x35mm2 4x70 mm2 + 1x35mm2 5x50 mm2
1x95 mm2 2x95 mm2 3x 95 mm2 3x95 mm2 + 1x50mm2 4x95 mm2 3x95 mm2 + 2x50mm2 4x95 mm2 + 1x50mm2 5x70 mm2
1x120 mm2 2x120 mm2 3x 120 mm2 3x120mm2 + 1x70mm2 4x120 mm2 3x120mm2 + 2x70mm2 4x120mm2 + 1x70mm2 5x95 mm2
1x150 mm2 2x150 mm2 3x 150 mm2 3x150mm2 + 1x70mm2 4x150 mm2 3x150mm2 + 2x70mm2 4x150mm2 + 1x70mm2
1x185 mm2 2x185 mm2 3x 185 mm2 3x185mm2 + 1x95mm2 4x185 mm2 3x185mm2 + 2x95mm2 4x185mm2 + 1x95mm2
1x240 mm2   3x 240 mm2 3x240mm2 + 1x120mm2 4x240 mm2 3x240mm2 + 2x120mm2 4x240mm2 + 1x120mm2
1x300 mm2   3x 300 mm2 3x300mm2 + 1x150mm2 4x300 mm2 3x300mm2 + 2x150mm2 4x300mm2 + 1x150mm2
1x400 mm2
1x500 mm2




Other power cables



Cross-linked polyethylene or PVC insulation, PVC or polyethylene outer sheath, STA armored or non-armoured power cables/cables copper core power cables

Type: VV, YJV, VV22, YJV22, VV23, YJV23, NH-VV2 2

Number of cores: single core, 2 cores, 3 cores, 4 cores, 5 cores

Production range: 1.5mm2, 2.5mm2, 4mm2, 6mm, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 204mm2, 3504mm2 ,630mm2

Relevant voltage: 300/300v, 300/500v, 450/750v, 0.6/1kV



Applications



This product is suitable for the transmission and distribution of electricity under AC rated voltage 0.6/1kv , operating frequency 50Hz lines.

Low voltage power cables are used for transmission and distribution of power in 1kV transmission and distribution systems. Widely used in electric power, mining, construction, metallurgy, petrochemical, communications and other fields, completely replace the oil-impregnated paper insulated power cable.



Cross-linked polyethylene insulated power cables Cross-linked polyethylene insulated power cables have many advantages over paper-insulated and PVC-insulated cables. Cross-linked polyethylene cable has the advantages of high electrical strength, mechanical strength, high ageing resistance, environmental stress resistance, chemical corrosion resistance, simple construction, ease of use and high long-term working temperature. It can be laid without descent restrictions.



Advantages of cross-linked polyethylene cables



cross-linked polyethylene cables have a higher long-term operating temperature and a higher current rating. Under the same environmental conditions, cross-linked polyethylene cables can be reduced in size by 1 or 2 steps (normal cross-section) compared to PVC cables. These not only improve the quality and performance of the product, but also reduce the cost of producing the cable. Armoured cables
