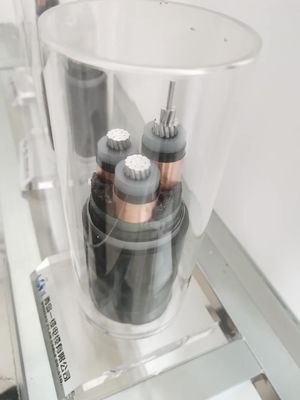

Xlpe insulated PVC sheathed steel tape steel wire armored power cable
1. XLPE cable standard:
According to GB12706 (equivalent to IEC60502), it can also be carried out in accordance with ASTM, BS, DIN and AS/NZS standards or other requirements.
2. Rated voltage of XLPE cable:
0.6 / 1KV 6 / 10KV; 8.7 / 15KV; 12 / 20KV; 18 / 20KV; 21 / 35KV; 6 / 35KV
3 . Physical and Electrical Characteristics
| No.cores x |
Insulation |
Sheath |
Outer Ø |
weight |
Current ratings in air 30℃ |
Current ratings buried 20℃ |
| cross-sec. |
thickness |
thickness |
approx. |
approx. |
| |
Nominal |
| Phase |
Neutral |
value |
| mm² |
mm |
mm |
mm |
mm |
kg / km |
A |
A |
| 3×4+1×2.5 |
0.7 |
0.7 |
1.8 |
12.7 |
277 |
37 |
47 |
| 3×6+1×4 |
0.7 |
0.7 |
1.8 |
13.9 |
363 |
47 |
60 |
| 3×10+1×6 |
0.7 |
0.7 |
1.8 |
16.1 |
527 |
64 |
81 |
| 3×16+1×10 |
0.7 |
0.7 |
1.8 |
18.6 |
766 |
85 |
106 |
| 3×25+1×16 |
0.9 |
0.7 |
1.8 |
22.2 |
1140 |
113 |
137 |
| 3×35+1×16 |
0.9 |
0.7 |
1.8 |
24.6 |
1475 |
139 |
164
|

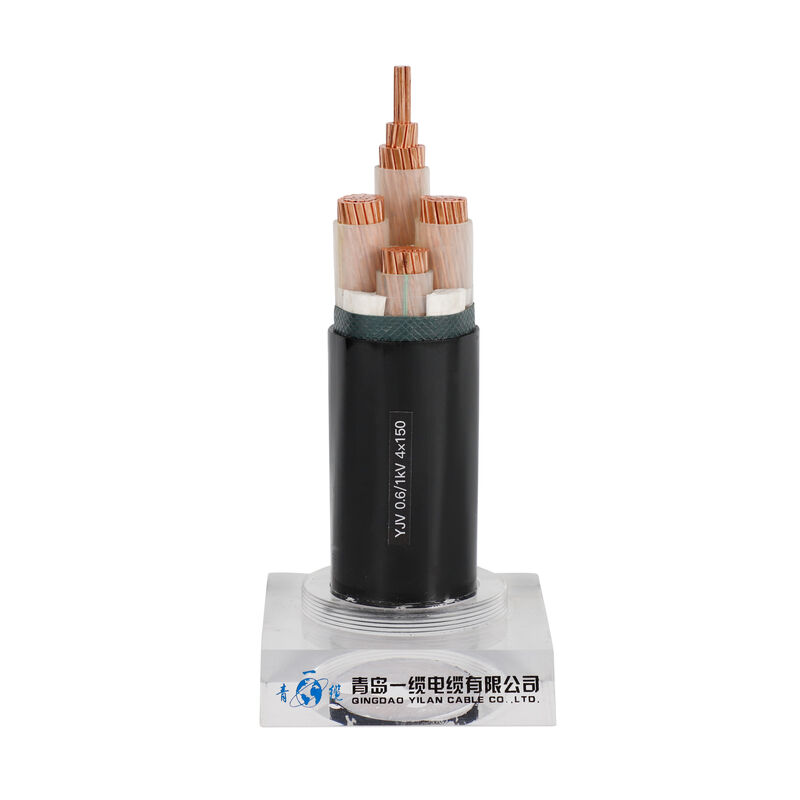

4. The structure of XLPE cable:
Conductor: copper or aluminum
Insulation: XLPE
Inner sheath: PVC or PE
Armour: galvanized steel strip, galvanized steel wire
Outer sheath: PVC or PE
No. Number of cable cross-sections: 1 core (single core), 2 cores (double core), 3 cores, 4 cores (4 cores with equal cross-sectional area or 3 equal cross-sectional areas + 1 neutral core with small cross-sectional area), 5 Core (5 3 equal cross-sectional area cores + 2 small-area neutral cores or 4 equal cross-sectional areas + 1 small-area neutral core. We provide armored and unarmored types for the above cables.
It can also be made according to customer requirements.
5 . Advantage:
One kind. Excellent electrical and mechanical properties
b. Best resistance to chemical corrosion and thermal aging, environmental stress and flame retardancy
C. Simple structure, easy to use
d. Reduce expense
