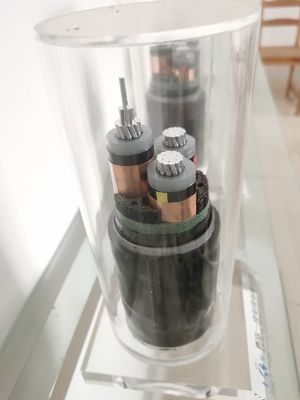

Fire Resistant PVC Sheathed Copper XLPE Power Cable

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: CE/IEC/KEMA/VDE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Iron-wooden Drum or Whole Wooden Drum
Delivery Time: 8-15 days
Payment Terms: L/C, T/T
Supply Ability: 100km per Month
  • Detail Information
  • Product Description

Detail Information

Name: Copper Conductor Cable Conductor Material:: Copper
Standard: IEC 60502-1 Outer Sheath:: PVC
Color: Customized Type: XLPE Underground Cable
High Light:

Fire Resistant XLPE Power Cable

,

PVC Sheathed XLPE Power Cable

,

IEC Xlpe Insulated Power Cable

Product Description

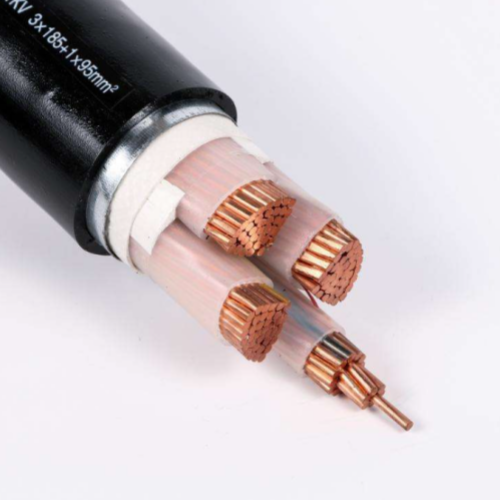

Fire-resistant XLPE sheathed power cable



XLPE sheathed power cable



This kind of cable has a special fireproof coating, so it has excellent heat insulation and fireproof performance. It is mainly used for fire protection, surveillance and alarm equipment in modern urban buildings and places with strict safety requirements, such as emergency lighting, control and power circuits, power stations, fire alarm systems, underground tunnels, elevators, escalators and high-rise buildings.
When burning, this kind of cable will not diffuse and burn, will not emit halogen and low smoke, is non-toxic, can protect people from suffocation and corrosion, and can help the instrument avoid damage. Compared with PVC cables, XLPE cables have a higher long-term working temperature and a larger rated current. Under the same conditions, the XLPE insulation layer is thinner than that of PE or PVC, which not only improves the quality and performance of the cable, but also Reduced our production costs.



Physical and Electrical Characteristics



No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
  Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139

164




 Product characteristics


1.1 The long-term allowable working temperature of the cable conductor does not exceed 70°C;
1.2. When short-circuited (the longest duration does not exceed 5 seconds), the maximum temperature of the cable conductor does not exceed 160°C;
1.3. The ambient temperature when laying cables should not be lower than 0°C.
2. Use characteristics
2.1 The maximum rated temperature of the cable conductor is 90°C, and the short-circuit time (the longest duration does not exceed 5S), and the maximum temperature of the cable conductor does not exceed 250°C.
2.2 The ambient temperature when laying the cable should not be lower than 0°C
2.3 The bending radius should be allowed when laying: single-core cables are not less than 15 times the outer diameter of the cable; multi-core cables are not less than 10 times the outer diameter of the cable
