Product Details:
|
|
| Brand Name: | HOLD-ONE |
|---|---|
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100m |
| Packaging Details: | Wooden drum |
| Delivery Time: | 7 Days after received deposit |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Product Name: | Mineral Insulated Cable | Insulation Material: | PVC |
|---|---|---|---|
| Conductor Material: | Copper | Outer Jacket: | Clean & Smooth PVC |
| Type: | Insulated | Number Of Conductors: | Multicore |
| High Light: | Hospital Mineral Insulated Wire,Mineral Insulated Thermocouple Wire,SS321 Sheath Mineral Insulated Cable |
||
Product Description
Heat-resistant cable mineral insulated wire for hospital
Name: mineral insulated thermocouple wire
Type: K, N, E, J, T
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, INCL600, Nicrobell
Dia(mm): from 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Place of Origin: Jiangsu, China (Mainland)
Eco-friendly: Yes
MOQ: 100m
Certificate: ISO,CQC
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T, Western Union, L/C
Advantage: Competitive price and best service
onductor: Stranded bear copper
Insulation (first layer): mica tape, flame retardant
Insulation (second layer): Halogen-free cross-linked polyethylene (XLPE)
Binder tape: glass-fibre tape
Filler: Glass yarns
core wraping: glass-fibre tape as flame-protection
Inner Sheath: oxygen barrier layer
Sheath: Halogen-free thermoplastic polyolefin
Service Temperature: 90°C
Max. conductor temperture: 125°C
Short-Circuit Temperature: 250°C

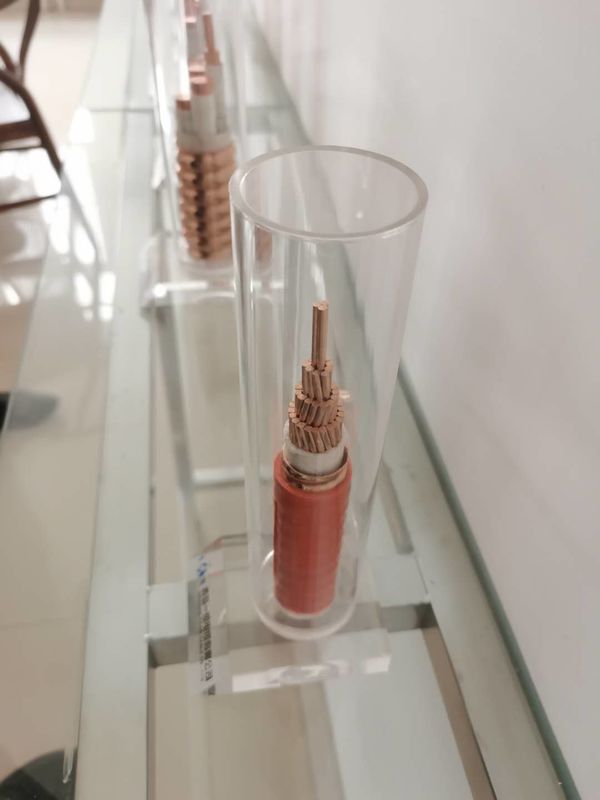

High temperature resistant mineral insulated copper sheathed cable
| Nominal Cross section |
Outer Diameter approx. |
Weight of cable approx. | Voltage drop | Mini bending radius |
|
| Single phase | Three phase | ||||
| mm2 | mm | kg/km | V/A.km | V/A.km | mm |
| 3 x 1.5 | 10.7 | 273.3 | 30.8 | 26.7 | 160.5 |
| 3 x 2.5 | 11.6 | 319.4 | 18.9 | 16.4 | 174.0 |
| 3 x 4 | 12.5 | 398.3 | 11.8 | 10.2 | 187.5 |
| 3 x 6 | 13.7 | 479.9 | 7.9 | 6.81 | 205.5 |
| 3 x 10 | 17.3 | 636.1 | 4.7 | 4.05 | 259.5 |
| 3 x 16 | 19.5 | 846.8 | 2.94 | 2.55 | 292.5 |
| 3 x 25 | 22.3 | 1,192.9 | 1.87 | 1.62 | 334.5 |
| 3 x 35 | 25.2 | 1,518.8 | 1.35 | 1.17 | 378.0 |
| 3 x 50 | 28.6 | 1,950.5 | 1.01 | 0.87 | 429.0 |
| 3 x 70 | 32.7 | 2,629.9 | 0.71 | 0.61 | 490.5 |
| 3 x 95 | 37.1 | 3,588.8 | 0.52 | 0.454 | 556.5 |
| 3 x 120 | 40.9 | 4,379.3 | 0.43 | 0.371 | 613.5 |
| 3 x 150 | 45.5 | 5,284.9 | 0.36 | 0.313 | 682.5 |
| 3 x 185 | 49.6 | 6,521.5 | 0.30 | 0.265 | 744.0 |
| 3 x 240 | 55.5 | 8,378.5 | 0.26 | 0.222 | 832.5 |
| 3 x 300 | 62.0 | 1,0309.3 | 0.23 | 0.197 | 930.0 |
