Tunnels Fire Survival Three Wire Mineral Insulated Cable

Tunnels Fire Survival Three Wire Mineral Insulated Cable

  • High Light

    Three Wire Mineral Insulated Cable

    ,

    Multi Core Mineral Insulated Cable

    ,

    MICC Mineral Insulated Cable

  • Product Name
    Mineral Insulated Cable
  • Insulation Material
    PVC
  • Conductor Material
    Copper
  • Outer Jacket
    Clean & Smooth PVC
  • Type
    Insulated
  • Number Of Conductors
    Multicore
  • Brand Name
    HOLD-ONE
  • Minimum Order Quantity
    100m
  • Packaging Details
    Wooden drum
  • Delivery Time
    7 Days after received deposit
  • Payment Terms
    L/C, T/T

Tunnels Fire Survival Three Wire Mineral Insulated Cable

Three Wire Mineral Insulated Cable Copper Conductor For Fire Survival System

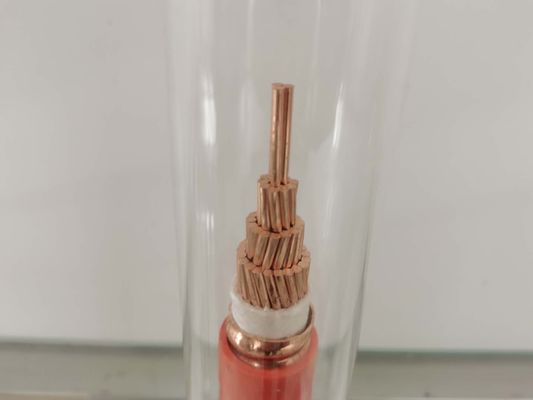

Mineral insulated cables (MI or MICC cable) are made of copper conductor inside a copper sheath, insulated by compressed powdered magnesium oxide that used for fire survival system.

MI fire survival cable system provides the ideal solution to many difficult and demanding wiring installations making permanent and dependable wiring cable systems for all low and medium voltage applications. Exceed all worldwide fire performance standards.

Standard

IEC 60702-1: 2002

IEC 60702-2: 2002

GB/T 13033.1-2007

GB/T 13033.2-2007



Three Wire Mineral Insulated Cable Copper Conductor For Fire Survival System



Application



Public service

Railway stations, road & rail tunnels, public lighting, car parks, public service buildings.

Property & personal safety

Shopping malls, airports, underground rail systems, schools, hospitals, hotels, theatres, churches.

High temperature situation

Foundries, power stations, boiler houses, iron & steel industries, marine & ship buildings.

Potentially explosive area

Refineries, chemical plants, oil & gas production, filling stations, processing plants, garages.

Hygiene situation

Food & drink processing, pharmaceutical works, hospitals, kitchens, refrigeration plants.

General installation

Power distribution & sub circuits, fire alarms & emergency, lifts & escalators lighting, lighting & power.



Tunnels Fire Survival Three Wire Mineral Insulated Cable 0



Property



Fire resistant

Will neither burn or support combustion. Comply with the requirements of IEC 60331 and BS 6387.

High operation temperature

Continuous operating temperature up to 250 °C, and for short periods up to approaching the melting point of copper 1083 °C.

Inherent flameproof barrier

With a non-flammable sheath the high compacted insulation will resist the transmission of vapors, gases or flames.

High mechanical strength

Really robust and can withstand a considerable amount of stresses such as, twisting, bending and flattening.

Pliable

Fully annealed and extremely ductile and easily manipulated to follow existing wiring routes and irregular shapes.

Non-ageing, Integral earth continuity, Small overall diameter

Waterproof, Corrosion resistant, Radiation resistant

Excellent electric shielding, Easy installation, Long service life



Three Wire Mineral Insulated Cable Copper Conductor For Fire Survival System
