AWG14 Multi Core Copper Clad Mineral Insulated Cable

AWG14 Multi Core Copper Clad Mineral Insulated Cable

  • High Light

    Copper Clad Mineral Insulated Cable


    Multi Core Mineral Insulated Cable


    Flame Retardant MI Cable

  • Product Name
    Mineral Insulated Cable
  • Insulation Material
  • Conductor Material
  • Outer Jacket
    Clean & Smooth PVC
  • Type
  • Number Of Conductors
  • Brand Name
  • Minimum Order Quantity
  • Packaging Details
    Wooden drum
  • Delivery Time
    7 Days after received deposit
  • Payment Terms
    L/C, T/T

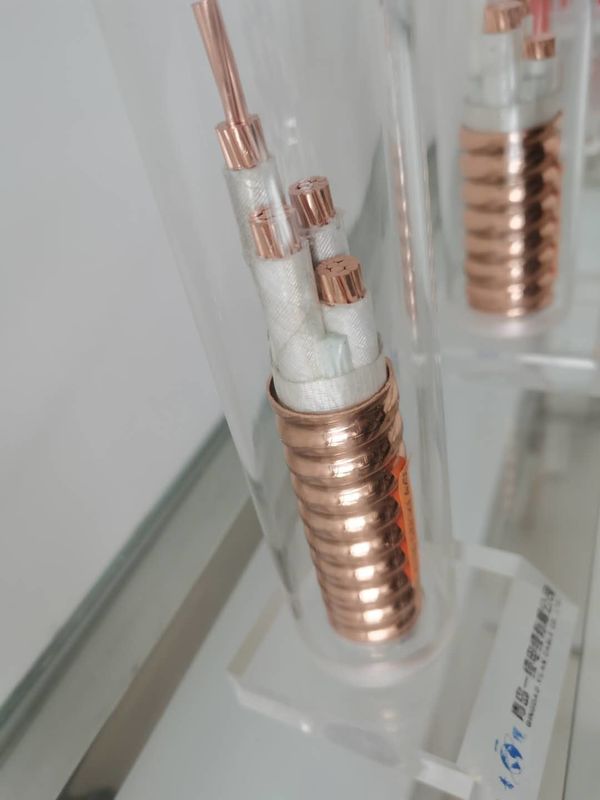

AWG14 Multi Core Copper Clad Mineral Insulated Cable

Copper-clad mixed paint mineral cable


Mineral cable structure:
Product name Flame-retardant MI cable BTTZ/BTTQ/BTLY fire-resistant mineral insulated cable
Product standard DIN VDE 0295 and IEC 228 standard twisted pair copper wire, GB5023.6-2012 and company standard
Core 1 2 3 4 5 3 + 1 3 + 2 4 + 1 core
Working life <25 years
Conductor copper type 5 categories
Oxygen-free copper conductor thin wire material
Insulating mineral compound (MgO) material
Core wire insulation color red/white/blue/black/green/yellow (optional)
Sheath low-smoke halogen-free polyolefin (LSZH / LSOH PO) material
Voltage 600~1000V
Advantages as deep as 500 meters
Section 0.25mm2~95.00mm2 / AWG1~AWG14
Minimum bending radius cable installation allowable bending radius should not be less than 6 times the cable width
Flame Retardancy Pass GB/T18380.1-2001 test and GB5023.6-2012
Insulation sheath aluminum (AL)






Lightweight rubber cable


Household appliances, small electric equipment

Soft, light and good bending performance;

YQW has weather resistance and certain oil resistance

Medium-sized rubber cable


Industry, widely used in agricultural electrification

YZW has weather resistance and certain oil resistance

Heavy rubber cable


Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc.

Has good versatility, complete series specifications, good performance and stability;

YCW has weather resistance and certain oil resistance

Waterproof rubber cable


Diving motor

Good bending performance, can withstand frequent movement

Welding machine rubber cable


Electric welding machine




Tinned power cable for field use






Public service

Railway stations, road & rail tunnels, public lighting, car parks, public service buildings.

Property & personal safety

Shopping malls, airports, underground rail systems, schools, hospitals, hotels, theatres, churches.

High temperature situation

Foundries, power stations, boiler houses, iron & steel industries, marine & ship buildings.

Potentially explosive area

Refineries, chemical plants, oil & gas production, filling stations, processing plants, garages.

Hygiene situation

Food & drink processing, pharmaceutical works, hospitals, kitchens, refrigeration plants.

General installation

Power distribution & sub circuits, fire alarms & emergency, lifts & escalators lighting, lighting & power.


Special Characteristics:


Fire resistant

Will neither burn or support combustion. Comply with the requirements of IEC 60331 and BS 6387.

High operation temperature

Continuous operating temperature up to 250 °C, and for short periods up to approaching the melting point of copper 1083 °C.

Inherent flameproof barrier

With a non-flammable sheath the high compacted insulation will resist the transmission of vapors, gases or flames.

High mechanical strength

Really robust and can withstand a considerable amount of stresses such as, twisting, bending and flattening.


Fully annealed and extremely ductile and easily manipulated to follow existing wiring routes and irregular shapes.

Non-ageing, Integral earth continuity, Small overall diameter

Waterproof, Corrosion resistant, Radiation resistant

Excellent electric shielding, Easy installation, Long service life
