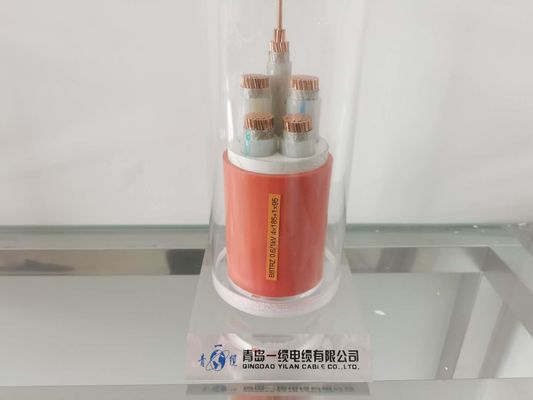

Railway 10kV Multi Core PVC Copper Insulated Power Cable

Railway 10kV Multi Core PVC Copper Insulated Power Cable

  • High Light

    PVC Copper Insulated Power Cable

    ,

    10kV Insulated Power Cable

    ,

    50HZ Insulated Power Cable

  • Product Name
    Mineral Insulated Cable
  • Insulation Material
    PVC
  • Conductor Material
    Copper
  • Outer Jacket
    Clean & Smooth PVC
  • Type
    Insulated
  • Number Of Conductors
    Multicore
  • Brand Name
    HOLD-ONE
  • Minimum Order Quantity
    100m
  • Packaging Details
    Wooden drum
  • Delivery Time
    7 Days after received deposit
  • Payment Terms
    L/C, T/T

Railway 10kV Multi Core PVC Copper Insulated Power Cable

PVC copper insulated power cable



1. Use standards and scope

It has the characteristics of stable performance, advanced technology, rich material resources, low price, good flexibility, and easy laying and maintenance. It is suitable for laying AC50HZ for power distribution lines, with a nominal voltage of 10kV and below. We can produce cables according to GB, IEC, BS, VDE, AS/NZS, ICEA, JIS.

2. Special features used

1. The long-term allowable working temperature of the cable conductor does not exceed 70°C.
2. When short-circuit (the longest duration does not exceed 5 seconds), the maximum temperature of the cable conductor does not exceed 165'C.
3. The level difference of laying cables is not limited. When laying cables, the ambient temperature should not be lower than 0'C.
4. Good chemical stability, acid and alkali resistance, alkali resistance, salt resistance, oil resistance, solvent resistance, flame retardant.
5. Light weight, good bending performance, easy installation and maintenance.

3.Installation conditions:


During cable laying, the ambient temperature must be higher than 0°C. The allowable bending radius should not be less than 15 times the outer diameter of the cable. In addition to direct burial, it can also be used in tunnels, cable trenches, cable trays, cable trays and cable shafts.



4.Application



It is suitable for transmission and distribution lines in important places such as high-rise buildings, railway transportation, hospitals, shopping malls, exhibition halls, carports, entertainment venues, and data centers.





NAME
MODEL
USAGE
FEATURE
Lightweight rubber cable
YQ,YQW
Household appliances, small electric equipment
Soft, light and good bending performance;
YQW has weather resistance and certain oil resistance
Medium-sized rubber cable
YZ,YZW
Industry, widely used in agricultural electrification
YZW has weather resistance and certain oil resistance
Heavy rubber cable
YC,YCW
Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc.
Has good versatility, complete series specifications, good performance and stability;
YCW has weather resistance and certain oil resistance
Waterproof rubber cable
JHS,JHSB
Diving motor
Good bending performance, can withstand frequent movement
Welding machine rubber cable
YH,YHF
Electric welding machine
/
/
YHD
Tinned power cable for field use
/



5.Performance and advantages



1. Fire performance:



—The cable has excellent fire resistance. It complies with the highest fire resistance rating of 950℃3h specified by British Standard BS6387. In addition, it can withstand water mist and mechanical shock. As a result, it exceeds the fire resistance requirement of 750°C for 90min specified in GB/T19216.21 and GB/T19216.11.



2. Longer continuous length:



—The length of single-core and multi-core cables can meet the power requirements. The continuous length of each cable can exceed 1000m.



3. Larger cross-sectional area:



The maximum cross-sectional area of ​​a single-core cable can be 630mm². The maximum cross-sectional area of ​​a multi-core cable can be 300mm².



4. Flexibility:



-The cable can be coiled in the cable trough. Bending radius≤20D (D represents the outer diameter of the cable)



5. Smokeless and non-toxic during combustion:



—The cable will not produce harmful gas or cause secondary pollution. This is an environmentally friendly product.



6. Good safety performance:



—Fireproof cables can maintain normal power in the flame, so people can use fire-fighting equipment and escape facilities. In this way, personal safety will be reliably guaranteed and economic losses will be reduced.



7. Long service life:



—Inorganic insulating materials have the function of high temperature resistance and anti-aging. Its service life is many times that of organic insulated cables. In normal operation, its maximum service life will exceed 100 years.



8. Easy to transport and install:



—The transportation and installation of fireproof cables, including the installation of accessories similar to ordinary cables, are easy.
