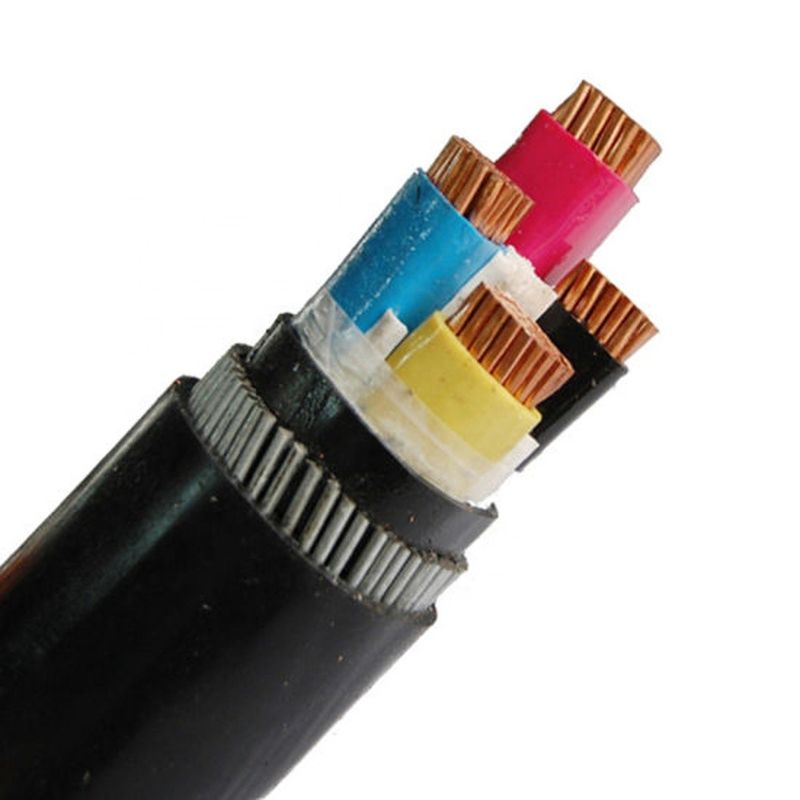

90 Degree 4 Core PVC Insulation Flame Retardant Cable

Product Details:
Brand Name: HOLD-ONE
Payment & Shipping Terms:
Minimum Order Quantity: 100m
Packaging Details: Wooden drum
Delivery Time: 7 Days after received deposit
Payment Terms: L/C, T/T
  • Detail Information
  • Product Description

Detail Information

Product Name: Flame Retardant Cable Conductor Material: Copper
Characteristic: Fire Protection,Low Load Application: Industrial
Sheath Color: Optional Insulation Material: PVC
Core Number: 4Cores Working Temperature: 70-90 Degrees
High Light:

PVC Insulation Flame Retardant Cable

,

90 Degree Flame Retardant Cable

,

1kV Flame Retardant Cable

Product Description



90 degree 4-core flame retardant cable



Flame retardant cable introduction

The method generally used for flame-retardant cables is to add halogen-containing halides and metal oxides to materials such as insulation, sheath and filling. Evaluation from the perspective of flame retardancy is an excellent method.



Application scope:

Polyvinyl chloride insulated power cables are suitable for fixing in AC 50HZ, rated voltage 0.6/1kV transmission and distribution lines.
XLPE insulated power cables have many advantages compared with paper insulated and PVC insulated cables. Cross-linked polyethylene cables have high electrical properties, mechanical properties, thermal aging properties, environmental stress cracking resistance, chemical corrosion resistance, simple structure, easy use, and are not limited by large layer differences. Can be used for a long time at 90 degrees high temperature

Nominal section area (mm2) Copper core Aluminum core Nominal section area (mm2) Copper core Aluminum core
1.5 12.1 18.1 95 0.193 0.32
2.5 7.41 12.1 120 0.153 0.253
4 4.61 7.41 150 0.124 0.206
6 3.08 4.61 185 0.099 0.164
10 1.83 3.08 240 0.0754 0.125
16 1.15 1.91 300 0.0601 0.1
25 0.727 1.2 400 0.047 0.778
35 0.524 0.868 500 0.0366 0.0605
50 0.387 0.641 630 0.0283 0.0469
70 0.268 0.443 800 0.0221 0.0367





Technical performance:

1. The maximum temperature of long-term work: ≤90°C
2. Installation temperature: ≥0°C
3. The highest short-circuit temperature (no more than 5 seconds): 250°C
4. In the case of insufficient mechanical tension, it cannot be laid without falling. Single-core cables cannot be fixed with iron laying pipes or round iron tools around the cable
