| MOQ: | Negotiable |
| Price: | Negotiable |
| Standard Packaging: | Iron-wooden Drum or Whole Wooden Drum |
| Delivery Period: | 8-15 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100km per Month |

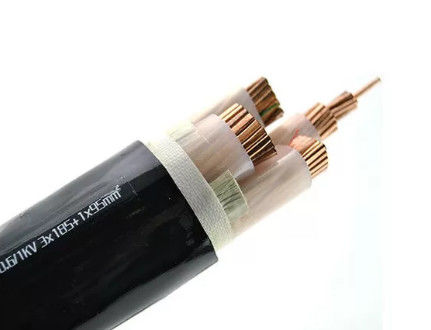

OEM Waterproof XLPE Power Cable , XLPE Electrical Cable 600 / 1000 V
Electrical characteristics
-------------------------------------------------------
–Rated voltage Uo/U (Um): 600 / 1000 V
–Maximum current rating air 30°C:354 A
–Maximum current rating buried 20°C: 405 A
–Maximum DC resistance, conductor 20°C:0.19Ω / km
–Test voltage: 4000 V
Dimensional characteristics
-------------------------------------------------------
– Nominal cross-section: 95 mm2
– No of Conductors: single 2 Core
– Insulation thickness: 1.1mm
– sheath thickness nominal value:2.0 mm
– Max overall diameter Ø: 24.6 mm
– Approximate weight:2117kg/km
Usage characteristics
-------------------------------------------------------
– Maximum operating temperature: 90 °C
– Short circuit temperature: +250°C (short circuit duration max. 5 s)
– during installation up to -5°C
– Temperature range: - 20 to + 90 °C
– Minimum bending radius:15 x cable Ø
Standards
-------------------------------------------------------
International: IEC 60502-1
National:GB/ T 12706.1-2008
Construction characteristics
-------------------------------------------------------
1. Conductor
– Bare copper conductor, Class 2 to IEC 60228
– For smaller sizes, a solid round conductor, Class 1
2. Insulation: XLPE Compound
3. Filler: PP filler
4. Outer Sheath :PVC Compound
5. Sheath colour :Black
Note:
when required for a particular application, other colors are available.
RECOMMENDED ORDERING PARAMETERS
-------------------------------------------------------
For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :
1 - International or Special Standard. (Alternatively, the precise usage of the cable.)
2 - Rated voltage.
3 - Copper or Aluminium conductors.
4 - Size of each conductor.
|
|
