IEC 60502-1 Unarmoured XLPE Insulated Cable With Cu - Conductor Durable

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: CE/IEC/KEMA/VDE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Iron-wooden Drum or Whole Wooden Drum
Delivery Time: 8-15 days
Payment Terms: L/C, T/T
Supply Ability: 100km per Month
  • Detail Information
  • Product Description

Detail Information

Name: XLPE Insulated Cable Conductor Material:: Cu - Conductor
Standard: IEC 60502-1 Outer Sheath:: PVC Compound
Color: Customized Type: Unarmoured
High Light:

xlpe power cable

,

cross linked polyethylene cable

Product Description

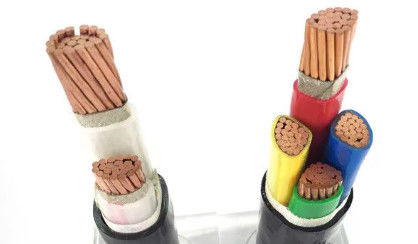

IEC 60502-1 Unarmoured XLPE Insulated Cable With Cu - Conductor Durable



Applications



These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.



Details



1. Conductors

------------------------------------------------------------------------------------------------------

The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.
2. Insulation

------------------------------------------------------------------------------------------------------

XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.
3. Assembly / Inner Covering

------------------------------------------------------------------------------------------------------

The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores, a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder is permitted before application of an extruded inner covering. The material is compatible with the insulating material,The materials used for inner coverings and fillers shall be suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables, the inner covering and fillers shall also be halogen free compound.
4. Armour

------------------------------------------------------------------------------------------------------

Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.
5. Outer Sheath

------------------------------------------------------------------------------------------------------

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.



Parameters



No.cores x
cross-sec.
Insulation
thickness
Sheath
thickness
Nominal
value
Outer Ø
approx.
weight
approx.
Current ratings in air 30℃ Current ratings buried 20℃ maximum DC resistance at 20℃
mm² mm mm mm kg / km A A Ω/km
2×2.5 0.7 1.8 10.6 140 37 54 7.41
2×4.0 0.7 1.8 11.6 192 47 70 4.61
2×6.0 0.7 1.8 12.6 245 60 86 3.08
2×10 0.7 1.8 15.2 362 84 115 1.83
2×16 0.7 1.8 16.6 514 113 149 1.15
2×25 0.9 1.8 19.8 734 150 191 0.73
2×35 0.9 1.8 17.2 968 185 231 0.52
2×50 1.0 1.8 19.4 1190 226 275 0.39
2×70 1.1 1.9 22.0 1591 287 337 0.27
2×95 1.1 2.0 24.6 2117 354 405 0.19
2×120 1.2 2.1 27.4 2617 431 463 0.15
2×150 1.4 2.2 30.2 3239 494 522 0.12
2×185 1.6 2.3 34.0 5126 592 591 0.10
