|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1000m|
|Price:||USD( 1-100) per meter|
|Packaging Details:||Roll or steel wooden drum|
|Delivery Time:||15-20 days|
|Supply Ability:||50km per week|
|Outer Sheath Material:||Copper||Rated Voltage:||600/1000V|
|Rated Working Voltage:||Light Load 500V Heavy Load 750V||Insulation Resistance:||≥ 10000 MΩ|
|Standard:||JG/T 313-2011||Rated Current:||Single-core 25-1800 A Multi-core 16-500 A|
extreme temperature wire,
belden high temp cable

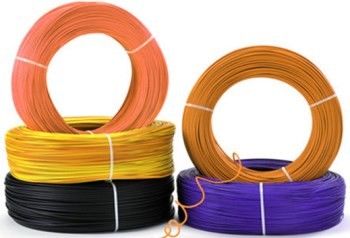

Custom 600V / 1000V High Temperature Cable , Heat Resistant Flexible Cable
High Temperature Cable
High Temperature Cable is crucial in a wide range of applications, including industrial, household and commercial ovens, in cooking and in drying equipment, in chemical processing and in medical equipment (e.g. in surgical devices that require sterilization in an autoclave).
We can custom manufacture wire and cable to handle operating temperatures ranging from -60° Celsius up to +1200° Celsius. We also manufacture high temperature cable to meet a wide range of applicable UL standards. We offers multi-pair and twisted pair cable types and multi-conductor cables, all insulated as needed for the particular application. We can manufacture a range of custom cable from 2 conductors at .050″ to more complex multi-conductor cables with up to 36 conductors of mixed types.
Structure of flexible fireproof cable
1. Cable conductor: it is made up of stranded copper wires, with favorable flexural property
2. Insulation layer : it adopts high-temperature resistant inorganic insulating materials
3. Copper sheath: copper materials, through special machining, with favorable flexural property. used as PE wire.
4. Outer sheath: it is made of plastic materials of low-smoke non-toxicity, with favorable corrosion protection.
High-temperature cable constructions, from conductor to insulating system, are rated 125°C, 150°C, 200°C, 250°C, 450°C and 550°C. Products include braided, braidless silicone (SRML), TGGT and MG types.
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.
