450V / 750V Flame Retardant Cable Colorful Flexible Copper Conductor

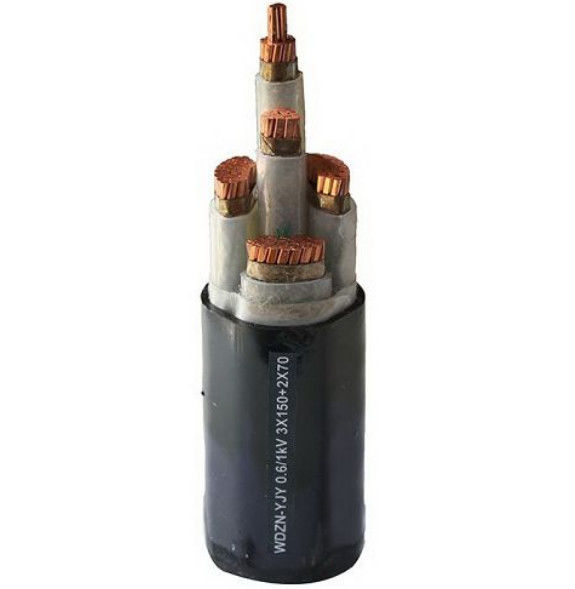

Cable Structure
Conductor : Class 1,2,5 Flexible Copper Conductor
Screen: Mica tape
Insulation: PVC or LSZH PO
Sheath:PVC: (Optional)
Rated Voltage : 450/750V
1. Application
Flexible cable for medium mechanical stresses. Permitted frequent bending and twisting. Specially suitable for application in household, kitchens and offices in dry and damp conditions, for inst. washing-machines, dryers, refrigerators etc., as long as the cable is adapted to essential specifications of the device. Also suitable for cookers, i.e. hot devices, on condition that it does not get in direct contact with hot parts of the device and is not exposed to heat irradiation. Suitable for fixed installation in furniture, partition walls, decorative linings and cavities in prefabricated construction elements
2. Technical data
Temperature range :
during installationi : +5 °C up to +70 °C
fixed installed : -30 °C up to +70 °C
at short circuit of max. 5 s : up to 150 °C
ambient temperature at storage : up to 40 °C
Nominal voltage : Uο/U = 300/500 V
Test voltage : 2000 V
Minimal inner bending radius : 4D for D < 8 mm
5D for 8 - 12 mm
6D for D > 12 mm
| corexsection mm2 | conductor structure | External diameter mm | Insulation thickness mm | Sheath thickness mm | Conductor resistance at 20 °C Ω/km | Specific. el. resistance of insulation at 70°C MΩkm |
| 2x0.75 | 24x0.2 | 5.7-7.2 | 0.6 | 0.8 | 26.0 | 0.011 |
| 2x1 | 32x0.2 | 5.9-7.5 | 0.6 | 0.8 | 19.5 | 0.010 |
| 2x1.5 | 30x0.25 | 6.8-8.6 | 0.7 | 0.8 | 13.3 | 0.010 |
| 2x2.5 | 50x0.25 | 8.4-10.6 | 0.8 | 1.0 | 7.98 | 0.0095 |
| 3x0.75 | 24x0.2 | 6.0-7.6 | 0.6 | 0.8 | 26.0 | 0.011 |
| 3x1 | 32x0.2 | 6.3-8.0 | 0.6 | 0.8 | 19.5 | 0.010 |
| 3x1.5 | 30x0.25 | 7.4-9.4 | 0.7 | 0.9 | 13.3 | 0.010 |
| 3x2.5 | 50x0.25 | 9.2-11.4 | 0.8 | 1.1 | 7.98 | 0.0095 |
| 3x4 | 56x0.3 | 10.5-13.1 | 0.8 | 1.2 | 4.95 | 0.0078 |
| 4x0.75 | 24x0.2 | 6.6-8.3 | 0.6 | 0.8 | 26.0 | 0.011 |
| 4x1 | 32 x 0,20 | 7,1 - 09,0 | 0.6 | 0.9 | 19.5 | 0.010 |
| 4x1.5 | 30 x 0,25 | 8,4 - 10,5 | 0.7 | 1.0 | 13,3 | 0,010 |
| 4x2.5 | 50 x 0,25 | 10,1 - 12,5 | 0,8 | 1.1 | 7,98 | 0,0095 |
| 4x4 | 56 x 0,30 | 11,5 - 14,3 | 0,8 | 1.2 | 4,95 | 0,0078 |
| 4x6 | 84 x 0,30 | 14,7 | 0.8 | 1.2 | 3,30 | 0,0068 |
| 5x0.75 | 24 x 0,20 | 7,4 - 9,3 | 0.6 | 0.9 | 26.0 | 0.011 |
| 5x1 | 32 x 0,20 | 7,8 - 9,8 | 0.6 | 0.9 | 19.5 | 0,010 |
| 5x1.5 | 30 x 0,25 | 9,3 - 11,6 | 0.7 | 1.1 | 13.3 | 0,010 |
| 5x2.5 | 50 x 0,25 | 11,2 - 13,9 | 0.8 | 1.2 | 7,98 | 0,0095 |
Operating characteristics
1, Long-term allowable operating temperature of cable conductor ≤70°C
2, Highest working temperature of cable in case of short circuit (the longest lasting time is not over 5s):≤300mm2 cable conductor ≤160°C, ≥300 mm2 cable conductor≤ 140°C.
3, The laying temperature should over 0℃,Permissible bending radius of cable:for single core unarmored cable, should be no less than 20 times of it’s outer diameter ; for multi-core unarmored cable, should be no less than 15 times of it’s outer diameter
4, With flame-retardant property,ZA,ZB,ZC,ZD are 4 types
5, The product is applicable for AC 50 Hz transmission and distribution lines with rated voltage of 0.6/1KV
