Low Voltage Flame Retardant Cable XLPE Insulated 600/1000kV For Buildings

Low Voltage Flame Retardant Cable XLPE Insulated 600/1000kV For Buildings

  • High Light

    fire retardant cable

    ,

    flame retardant wire

  • Application
    Buidlings
  • Size
    1.5mm2 -800mm2
  • Rated Voltage
    600/1000kV
  • Screen
    Mica Tape
  • Sample
    Optional
  • Number Of Cores
    Single Or Muticore
  • Function
    Fire Resistant
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ISO/PCCC/CE/KEMA
  • Minimum Order Quantity
    100m
  • Price
    USD0.03-50
  • Packaging Details
    100m/roll or customized
  • Delivery Time
    As per requirement
  • Supply Ability
    10KM per Week

Low Voltage Flame Retardant Cable XLPE Insulated 600/1000kV For Buildings

Copper Conductor XLPE Insulated Fire Resistant Cable , Low Voltage Cable For Buildings






Product Name
FRC XLPE Fire Resistant Cable Price
Rated Voltage
0.6/1kV

Rated Temperature

90℃
Conductor
Solid or stranded copper conductor,with mica tape wound
Insulation
XLPE or LSZH compound
Sheath
LSZH compound
Sheath Color
Orange or red or black
Application
For fixed wiring;
Essential safety circuits where the cable is protected by trunk or conduit.

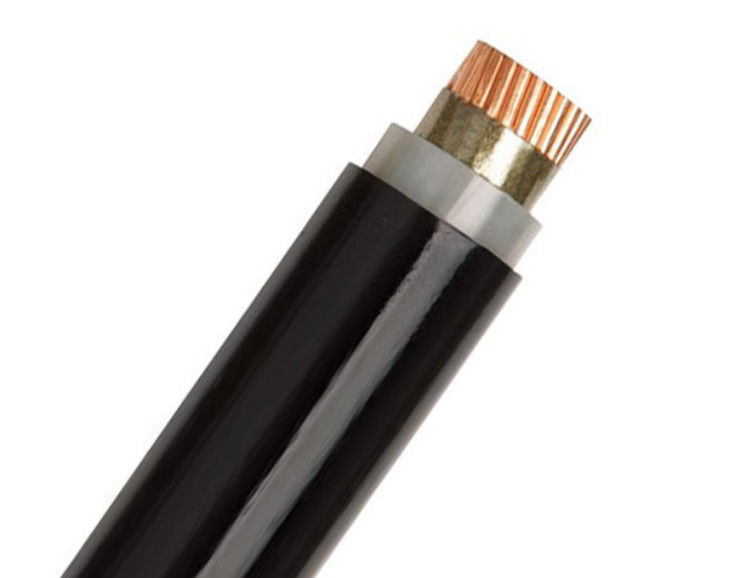

Low Voltage Flame Retardant Cable XLPE Insulated 600/1000kV For Buildings 0





Fire Resistant Cables

• Rated voltage: 450/750V, 600/1000V
• Construction: Bare stranded or solid copper conductor / Mineral ceramic (Mica/Glass) fire resistant      tape LSOH insulation
• Range: 0.5mm² – 400mm²
• Application: For fixed wiring / Essential safety circuits where the cable is protected by trunk or conduit



300/500V Mica+XLPE Insulated, LSZH Sheathed Power Cables (2-4 cores)

600/1000V Mica+XLPE Insulated, LSZH Sheathed Power Cables (2-4 cores)

300/500V SR Insulated Control Cables (2-4 Cores)

300/500V SR Insulated & Overall Screened Control Cables (2-4 Cores & Multicores)

300/500V Mica+SR Insulated & Overall Screened Control Cables (2-4 Cores & Multicores)

450/750V SR Insulated Control Cables (2-5 Cores)

450/750V SR Insulated & Overall Screened Control Cables (2-4 Cores & Multicores)

600/1000V SR Insulated Flexibles Control Cables



Constructions

Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound

Insulation: XLPE or LSZH compound

Sheath: LSZH compound

Core color: red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath

Max. Operating Temperature : 100 meters per roll or wooden drum or as per requirement

Production Capacity : 20 kilometer/ day

MOQ : 5000 meters for small size, 1000 meters for big size

Certificates

CE, RoHS, CCC, KEMA and more others at request






Operating characteristics

1, Long-term allowable operating temperature of cable conductor ≤70°C
2, Highest working temperature of cable in case of short circuit (the longest lasting time is not over 5s):≤300mm2 cable conductor ≤160°C, 300 mm2 cable conductor140°C.
3, The laying temperature should over 0℃,Permissible bending radius of cable:for single core unarmored cable, should be no less than 20 times of its outer diameter ; for multi-core unarmored cable, should be no less than 15 times of its outer diameter
4, With flame-retardant property,ZA,ZB,ZC,ZD are 4 types
5, The product is applicable for AC 50 Hz transmission and distribution lines with rated voltage of 0.6/1KV



Nom. Cross-section of conductor Insulation Thickness Sheath Approx. Approx Max. D.C. Resistance of Conductor (20°C) Test Voltage Current Rating
mm2 mm Thickness O.D. Weight Ω/km A.C
    mm mm kg/km   kV/5min In air(A) In soil(A)
3×1.5 0.7 1.8 13.4 203 12.1 3.5 20 27
3×2.5 0.7 1.8 14.2 246 7.41 3.5 26 35
3×4 0.7 1.8 15.2 304 4.61 3.5 34 45
3×6 0.7 1.8 16.4 376 3.08 3.5 43 57
3×10 0.7 1.8 19.1 534 1.83 3.5 60 77
3×16 0.7 1.8 21.4 737 1.15 3.5 83 105
3×25 0.9 1.8 24.7 1063 0.727 3.5 105 125
3×35 0.9 1.8 26.9 1380 0.524 3.5 125 155
3×50 1 1.9 30.5 1837 0.387 3.5 160 185
3×70 1.1 2 35 2490 0.268 3.5 200 225
3×95 1.1 2.1 39.1 3325 0.193 3.5 245 270
3×120 1.2 2.3 42.8 4120 0.153 3.5 285 310
3×150 1.4 2.4 47.5 5092 0.124 3.5 325 345
3×185 1.6 2.6 52.9 6245 0.0991 3.5 375 390
3×240 1.7 2.7 58.5 7996 0.0754 3.5 440 450
4×1.5 0.7 1.8 14.4 241 12.1 3.5 20 27
4×2.5 0.7 1.8 15.4 295 7.41 3.5 26 35
4×4 0.7 1.8 16.5 369 4.61 3.5 34 45
4×6 0.7 1.8 17.8 463 3.08 3.5 43 57
4×10 0.7 1.8 20.9 667 1.83 3.5 60 77
4×16 0.7 1.8 23.4 930 1.15 3.5 83 105
4×25 0.9 1.8 27.1 1351 0.727 3.5 105 125
4×35 0.9 1.8 29.5 1772 0.524 3.5 125 155
4×50 1 1.9 38.4 2380 0.387 3.5 160 185
4×70 1.1 2 43.2 3302 0.268 3.5 200 225
4×95 1.1 2.2 47.3 4330 0.193 3.5 245 270
4×120 1.2 2.3 52.5 5374 0.153 3.5 285 310
4×150 1.4 2.5 58.3 6655 0.124 3.5 325 345
4×185 1.6 2.7 64.7 8246 0.0991 3.5 375 390
4×240 1.7 2.9 73.1 10569 0.0754 3.5 440 450
5×1.5 0.7 1.8 13.6 284 12.1 3.5 20 27
5×2.5 0.7 1.8 16.6 349 7.41 3.5 26 35
5×4 0.7 1.8 17.9 441 4.61 3.5 34 45
5×6 0.7 1.8 19.3 558 3.08 3.5 43 57
5×10 0.7 1.8 22.8 809 1.83 3.5 60 77
5×16 0.7 1.8 25.6 1135 1.15 3.5 83 105
5×25 0.9 1.8 29.7 1664 0.727 3.5 105 125
5×35 0.9 1.9 32.6 2194 0.524 3.5 125 155
5×50 1 2 37.3 3013 0.387 3.5 160 185
5×70 1.1 2.1 42.9 4101 0.268 3.5 200 225
5×95 1.1 2.2 48.2 5382 0.193 3.5 245 270
5×120 1.2 2.4 52.7 6685 0.153 3.5 285 310
5×150 1.4 2.5 58.5 8363 0.124 3.5 325 345
5×185 1.6 2.7 65.1 10268 0.0991 3.5 375 390
5×240 1.7 3.1 72.3 13167 0.0754 3.5 440 450

Packing :

100 meters per roll, plastic reel, wooden pallet, wooden drum, or according to the customer request.
