ASTM Standard Overhead Bare Conductor Aluminum Conductor Steel Wire Reinforced

MOQ:	5KM
Price:	USD1-100/Meter
Standard Packaging:	Wooden Drum/ Steel Drum
Delivery Period:	Negotiable
Supply Capacity:	50000 Kilometers per Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

QINGDAO YICABLE CABLE

Certification

ISO, CCC, CE

Voltage:

High Voltage

Material Shape:

Round Wire

Certification:

ISO, CCC, CE

Standard:

IEC61089, ASTM B231, EN51082

HS Code:

7614100000

Sample:

Available

Drum Packing:

Steel Wooden Drum Or Wooden Drum

Highlight:

aaac conductor

acsr conductor

Product Description

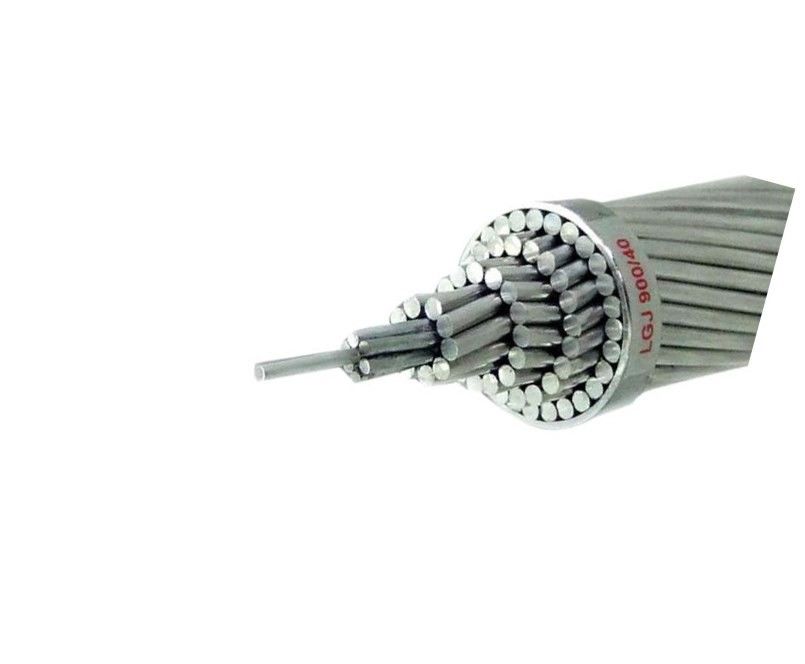

ASTM Standard Overhead Bare Conductor Aluminum Conductor Steel Wire Reinforced

Product Description

Aluminium Conductor Steel Reinforced ACSR (Different specifications and standard can be Customize according to the customer's special request)

1.Standard:IEC, BS,ASTM,DIN,NF,JIS .

2.Experience:more than 20 years manufacture experience

3.Hot sale to Africa,South Africa,Southeast Asia,North America.

4. Here only show ASTM standard Technical Data List,if you want to get more techincal data,pls send e-mail to us.

Code Name	Nominal	Number/Diameter		Calculated Area mm2			Diameter mm	Resistance ≤Ω/km	Force KN	Weight kg/km
Code Name	AWG or MCM	Al mm	Steel mm	Al	Steel	Total	Diameter mm	Resistance ≤Ω/km	Force KN	Weight kg/km
Turkey	6	6/1.68	1/1.68	13.29	2.19	15.48	5.04	2.1586	5.24	54
Swan	4	3/2.12	1/2.12	21.16	3.55	24.71	6.36	1.3557	8.32	85
Swanate	4	7/1.96	1/2.61	21.16	5.35	26.51	6.53	1.3557	10.53	100
Sparrow	2	6/2.67	1/2.67	33.61	5.61	39.22	8.01	0.8535	12.70	136
Sparate	2	7/2.47	1/3.30	33.61	8.52	42.13	8.24	0.8535	16.11	159
Robin	1	6/3.00	1/3.00	42.39	7.10	49.49	9.00	0.6767	15.85	171
Raven	1/0	6/3.78	1/3.37	53.48	8.90	62.38	10.11	0.5364	19.32	216
Quail	2/0	6/3.78	1/3.78	67.42	11.23	78.65	11.34	0.4255	23.62	273
Pigeon	3/0	6/4.25	1/4.25	85.03	14.19	99.22	12.75	0.3373	29.41	343
Penguin	4/0	6/477	1/4.77	107.23	17.87	125.10	14.31	0.2675	37.06	433
Waxwing	266.8	18/3.09	1/3.09	135.16	7.48	142.64	15.45	0.2133	30.27	431
Partridge	266.8	26/2.57	7/2.00	135.16	22.00	157.16	16.28	0.2143	50.29	546
Ostrich	300	26/2.73	7/2.12	152.00	24.71	176.71	17.28	0.1906	56.52	614
Merlin	336.4	18/3.47	1/3.47	170.45	9.48	179.93	17.5	0.1691	38.23	544
Linnet	336.4	26/2.89	7/2.25	170.45	21.81	198.26	18.31	0.1699	62.71	689
Oriole	336.4	30/2.69	7/2.69	170.45	39.81	210.26	18.83	0.1704	77.27	784
Chickadee	397.5	18/3.77	1/3.77	201.42	11.16	212.58	18.85	0.1431	43.99	642
Brant	397.5	24/3.27	7/2.18	201.42	26.13	227.55	19.61	0.1438	64.69	762
Ibis	397.5	26/3.14	7/2.44	201.42	32.77	234.19	19.88	0.1438	72.11	814
Lark	397.5	30/2.92	7/2.92	201.42	46.97	248.39	20.44	0.1442	88.69	927
Pelican	477	18/4.14	1/4.14	241.68	13.42	255.10	20.70	0.1193	52.16	771
Flicker	477	24/3.58	7/2.39	241.68	31.29	272.97	21.49	0.1199	76.66	915
Hawk	477	26/3.44	7/2.67	241.68	39.42	281.10	21.79	0.1199	86.65	978
Hen	477	30/3.20	7/3.20	241.68	56.39	298.07	22.40	0.1201	105.34	1112
Osprey	556.5	18/4.47	1/4.47	282.00	15.68	297.68	22.35	0.1022	60.88	899
Parakeet	556.5	24/3.87	7/2.58	282.00	36.58	318.58	23.22	0.1027	88.22	1067
Dove	556.5	26/3.72	7/2.89	282.00	45.94	327.94	23.55	0.1027	101.03	1140

Our Services:
Shanghai Shenghua Cable (Group) Co.,Ltd is a professional wires and cables manufacturer for 20 years in China. we support to offer many kinds of wires and cables, such as xlpe/pvc electrical power cable, control power cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need.

About Shenghua:

The biggest cable Manufacturer in China

Listed as No.2 of TOP 10 Cable Manufacturers

3 branch factories listed as Top 10 Cable Factories in China

Originated in 1950 and found in 1997

21 branch factories around China

80--available types of cables

600--sales branches and offices around the world

5000--Employees

1332000 m2--Total spaces
1100000 km--Annual output of cables
10000000000 RMB--Annual sales amount
