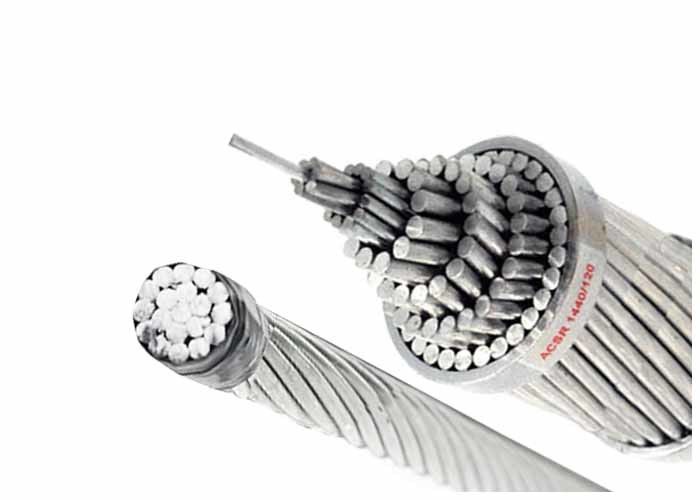

4-1000mm2 Bare Conductor Overhead Series ASTM B-231 AAC AAAC ACSR

4-1000mm2 Bare Conductor Overhead Series ASTM B-231 AAC AAAC ACSR

Products - Bare Conductor
  • High Light

    aaac conductor

    ,

    acsr conductor

  • Model Name
    Bare Aluminum Conductor
  • Size
    4-1000mm2
  • Conductor Type
    Stranded
  • Materil
    All Aluminum
  • Free Sample
    Yes
  • Warranty
    2 Years
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    PICC,ISO9001,ISO14001
  • Minimum Order Quantity
    3000Meter
  • Price
    USD0.5-78.6/M
  • Packaging Details
    Wooden-Steel Drum
  • Delivery Time
    20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50000 Kilometers per Month

4-1000mm2 Bare Conductor Overhead Series ASTM B-231 AAC AAAC ACSR

  • 4-1000mm2 Bare Conductor Overhead Series ASTM B-231 AAC AAAC ACSR
Get Price Contact Now

ASTM B-231 AAC AAAC ACSR Conductor Overhead Bare Conductor Series


Applications:
Stranded 1350 aluminum conductors:
Class AA: for bare conductors usually used in overhead lines.
Class A: for conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required.


SPECIFICATION
AREA STRANDING AND WIRE DIAMETER OVERALL DIAMETER WEIGHT
16 7/1.70 5.1 43.7
25 7/2.14 6.45 69.6
35 7/2.52 7.5 96.1
50 19/1.83 9 137.5
70 19/2.17 10.8 193.4
95 19/2.50 12.48 256.7
100 19/2.59 13 276
120 19/2.80 14.25 322
150 37/2.25 15.75 407.4
185 37/2.50 17.5 503
210 19/3.75 18.75 577.4
240 61/2.25 20 656.9
300 61/2.50 22.4 820.4




Specifications:
AAC bare conductors meet or exceed the following ASTM specifications:
B-230 aluminum wires, 1350-H19 for electrical purpose
B-231 aluminum conductors, concentrically lay-stranded
B-400 compact round concentric-lay-stranded aluminum 1350 conductors


Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.



We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!


About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.
