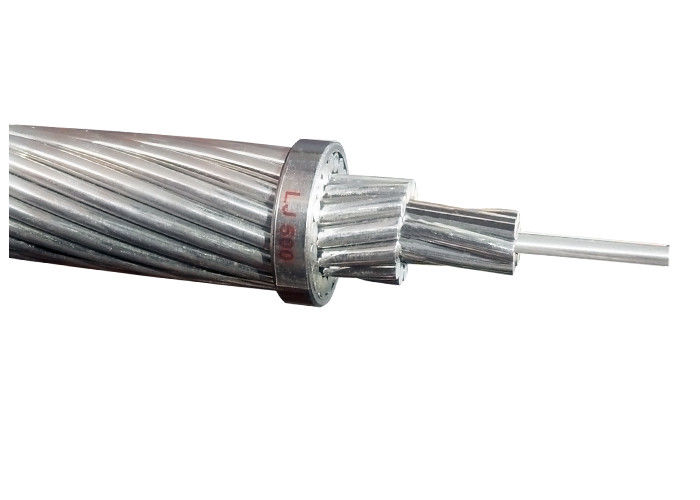

Zinc Coated Steel Wire GSW Bare Conductor For Power Transmission System
  • name
  • name
  • name

Zinc Coated Steel Wire GSW Bare Conductor For Power Transmission System

MOQ: 0.5km
Price: 0.10-10.99USD/m
Standard Packaging: Wooden Drum or Steel Drum
Delivery Period: 10Days or More
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 1000km per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
ASTM A475, BS 183:1972
Conductor:
Galvanized Steel Wire
Application:
Power Transmission System
Insulation:
No
Sheath:
No
Diametr:
5.5mm~37.5mm
No. Of Wires:
3sq Mm~37sq Mm
Highlight:

all aluminium alloy conductor

,

acsr conductor

Product Description

Zinc Coated Steel Wire GSW Bare Conductor For Power Transmission System





Specifications



The product galvanized steel wire (GSW) is used for the cord of ACSR (Aluminum Conductor Steel Reinforced) conductor. Being the leading enterprise of this industry, the GSW manufactured by Shenghua has excellent mechanical property, best quality of coating and nice condition of surface.







  Diameter(mm)     Tensile Strength(Mpa)     Weight of Zinc(g/m2)
  1.24~2.25     1340~1620     185~215
  2.25~3.00     1310~1590     230
  3.00~3.50     1290~1550     245
  3.50~4.25     1290~1520     260
  4.25~4.75     1290~1520     275
  4.75~5.50     1290~1520     290

Intensity Level Wire Diameter Min. Tensile Min. Stress With 1% Min. Extension Min. Number of 360° Diameter of Testing
    Strength Extension Percentage When L=250 twists   Mandril
  mm   mpa mpa %       multiple
  >1.24~2.25 1340 1170 3.0   16   1
  >2.25~2.75 1310 1140 3.0   16   1
  >2.75~3.00 1310 1140 3.5   16   1
General >3.00~3.50 1290 1100 3.5   14   1
  >3.50~4.25 1290 1100 4.0   12   1
  >4.25~4.75 1290 1100 4.0   12   1
  >4.75~5.50 1290 1100 4.0   12   1
  >1.24~2.25 1450 1310 2.5   16   3
  >2.25~2.75 1410 1280 2.5   16   3
  >2.75~3.00 1410 1280 3.0   16   4
High >3.00~3.50 1410 1240 3.0   14   4
  >3.50~4.25 1380 1170 3.0   12   4
  >4.25~4.75 1380 1170 3.0   12   4
  >4.75~5.50 1380 1170 3.0   12   4
  >1.24~2.25 1620 1450 2.0   14   4
  >2.25~2.75 1590 1410 2.0   14   4
  >2.75~3.00 1590 1410 2.5   12







 5
Very High >3.00~3.50 1550 1380 2.5   12   5
  >3.50~4.25 1520 1340 2.5   10   5
  >4.25~4.75 1520 1340 2.5   10   5
  >4.75~5.50 1520 1270 2.5   10   5



            ASTM A475
Number of Wires Approx. Strand Dia. Siemens High Extra High Approx. Weight
/Dia.     Martin Grade Strength Grade Strength Grade
  Inch mm kN kN kN kg/km
3/2.64 7/32 5.56 10.409 15.569 21.796 131
3/3.05 1/4 6.35 13.523 21.040 29.981 174
3/3.05 1/4 6.35 - - - 174
3/3.30 9/32 7.14 15.035 23.398 33.362 204
3/3.68 5/16 7.94 18.193 28.246 40.479 256
3/4.19 3/8 9.52 24.732 37.187 52.489 328
7/1.04 1/8 3.18 4.048 5.916 8.140 49
7/1.32 5/32 3.97 6.539 9.519 13.078 76
7/1.57 3/16 4.76 8.452 12.677 17.748 108
7/1.65 3/16 4.76 - - - 118
7/1.83 7/32 5.56 11.387 17.126 24.020 145
7/2.03 1/4 6.35 14.012 21.129 29.581 181
7/2.36 9/32 7.14 18.905 28.469 39.812 243
7/2.64 5/16 7.94 23.798 35.586 49.820 305
7/2.77 5/16 7.94 - - - 335
7/3.05 3/8 9.52 30.915 48.040 68.503 407
7/3.68 7/16 11.11 41.591 64.499 92.523 594
7/4.19 1/2 12.70 53.823 83.627 119.657 768
7/4.78 9/16 14.29 69.837 108.981 155.688 991
7/5.26 5/8 15.88 84.961 131.667 188.605 1211
19/2.54 1/2 12.70 56.492 84.961 118.768 751
19/2.87 9/16 12.49 71.616 107.202 149.905 948
19/3.18 5/8 15.88 80.513 124.995 178.819 1184
19/3.81 3/4 19.05 116.543 181.487 259.331 1719
19/4.50 7/8 22.22 159.691 248.211 354.523 2352
19/5.08 1 25.40 209.066 325.610 464.839 2384
37/3.63 1 25.40 205.508 319.827 456.832 3061
37/4.09 11/8 28.58 262.000 407.457 581.827 4006
37/4.55 11/4 31.75 324.720 505.318 721.502 4833











Zinc Coated Steel Wire GSW Bare Conductor For Power Transmission System 0









CERTIFICATION



Zinc Coated Steel Wire GSW Bare Conductor For Power Transmission System 1




Tags:

acsr conductor,

all aluminium alloy conductor,

aaac conductor
