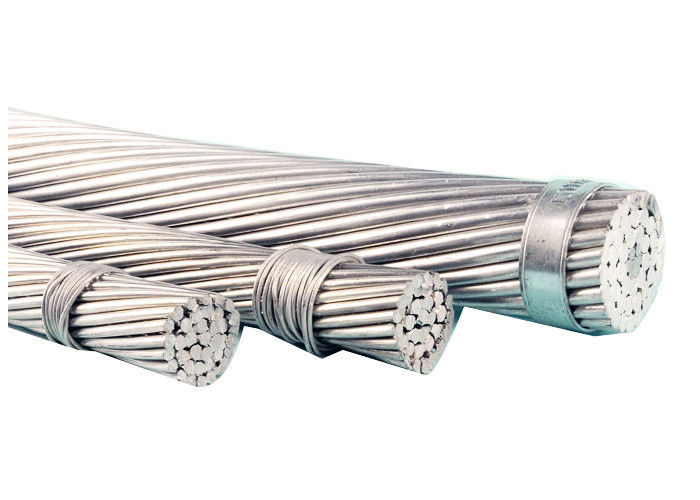

AAC All Aluminium Conductor Creep Resistance High Tension Strength Standard EN 51082
  • AAC All Aluminium Conductor Creep Resistance High Tension Strength Standard EN 51082
  • AAC All Aluminium Conductor Creep Resistance High Tension Strength Standard EN 51082
  • AAC All Aluminium Conductor Creep Resistance High Tension Strength Standard EN 51082
  • AAC All Aluminium Conductor Creep Resistance High Tension Strength Standard EN 51082

AAC All Aluminium Conductor Creep Resistance High Tension Strength Standard EN 51082

Place of Origin China
Brand Name QINGDAO YICABLE CABLE
Certification IEC61089, ASTM B231, EN51082
Product Details
Material:
Aluminium
Application:
Overhead Power Line
Sectional Area:
16mm²/.../800mm²
No. Of Single Wire:
7pcs/.../61pcs
Standard:
EN 51082
Type:
AAC
Highlight:

all aluminium alloy conductor

,

acsr conductor

Payment & Shipping Terms
Minimum Order Quantity
0.5KM
Price
0.19-10.99USD
Packaging Details
Wooden Drum/ Steel Drum
Delivery Time
15Days or More
Payment Terms
L/C,D/A,D/P,T/T,Western Union,
Supply Ability
50000 Kilometers per Month
Product Description


AAC All Aluminium Conductor Creep Resistance High Tension Strength


Specifications


AAC conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.



AAC








EN 51082










Area No. of Diameter
Mass per unit Rated DC
Code Name
wires Wire
Cond. length strength Resistance

mm2
mm
mm kg/km kN Ω/km
Midge 23.3 7 2.06
6.18 63.8 4.20 1.2249
Gnat 26.9 7 2.21
6.63 73.4 4.83 1.0643
Mosquito 36.9 7 2.59
7.77 100.8 6.27 0.7749
Ladybird 42.8 7 2.79
8.37 117.0 7.28 0.6678
Ant 52.8 7 3.10
9.30 144.4 8.72 0.5409
Fly 63.6 7 3.40
10.2 173.7 10.49 0.4497
Bluebottle 73.6 7 3.66
11.0 201.3 11.78 0.3880
Earwig 78.6 7 3.78
11.3 214.7 12.57 0.3638
Grasshopper 84.1 7 3.91
11.7 229.7 13.45 0.3400
Clegg 95.6 7 4.17
12.5 261.3 15.30 0.2989
Wasp 106.0 7 4.39
13.2 289.6 16.95 0.2697
Beetle 106.4 19 2.67
13.4 292.4 18.08 0.2701
Bee 132.0 7 4.90
14.7 360.8 21.12 0.2165
Hornet 157.6 19 3.25
16.3 433.2 26.01 0.1823
CAT 185.9 19 3.53
17.7 511.1 29.75 0.1546
Chafer 213.2 19 3.78
18.9 586.0 34.12 0.1348
Spider 237.6 19 3.99
20.0 652.9 38.01 0.1210
Cockroach 265.7 19 4.22
21.1 730.4 42.52 0.1081
Butterfly 322.7 19 4.65
23.3 886.8 51.63 0.0891
Moth 373.1 19 5.00
25.0 1025.3 59.69 0.0770
Drone 372.4 37 3.58
25.1 1027.1 59.59 0.0774
Centipede 415.2 37 3.78
26.5 1145.1 66.43 0.0695
Maybug 486.1 37 4.09
28.6 1340.6 77.78 0.0593
Scorpion 529.8 37 4.27
29.9 1461.2 84.77 0.0544
Cicada 628.3 37 4.65
32.6 1732.9 100.54 0.0459

AAC All Aluminium Conductor Creep Resistance High Tension Strength Standard EN 51082


AAC All Aluminium Conductor Creep Resistance High Tension Strength Standard EN 51082





AAC All Aluminium Conductor Creep Resistance High Tension Strength Standard EN 51082
